HA3803-BL

General specification Core Material: Ferrite Weight: 5.0 – 5.3 g Packaging: 200 per 13 reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.

900,00 ₽

Артикул: HA3803-BLD Категорий: HA3803-BL, HA380x, Power Over Ethernet, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 1.2 A (H)	DCR max (Ω) 4				Leakage Inductance max (H) 5		Turns Ratio 6	Isolation Voltage (Vrms) 7
Part number 2 (Hover for schematics)	Inductance at 0A (H) 3 (Tolerance: &plusmn,10%)	Inductance min at 1.2 A (H)	Pri	Sec	Drive	Bias	Pri	Drive	Pri : Sec : Drive : Bias	Isolation Voltage (Vrms) 7
HA3803-BL_	166.5	150.0	0.760	0.103	0.475	1.100	1.8	0.25	1 : 0.5 : 0.25 : 0.5	1500

Каталог

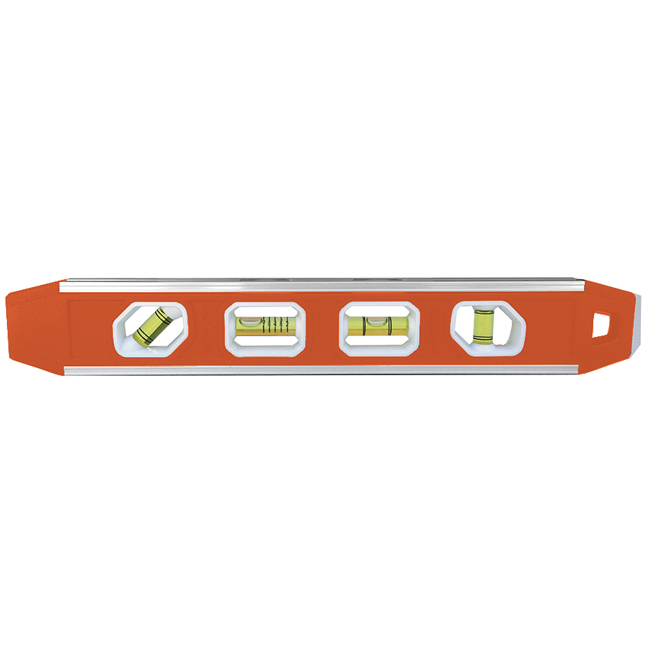

Johnson Level 12 Inch Magnetic Aluminum Reinforced Torpedo Level

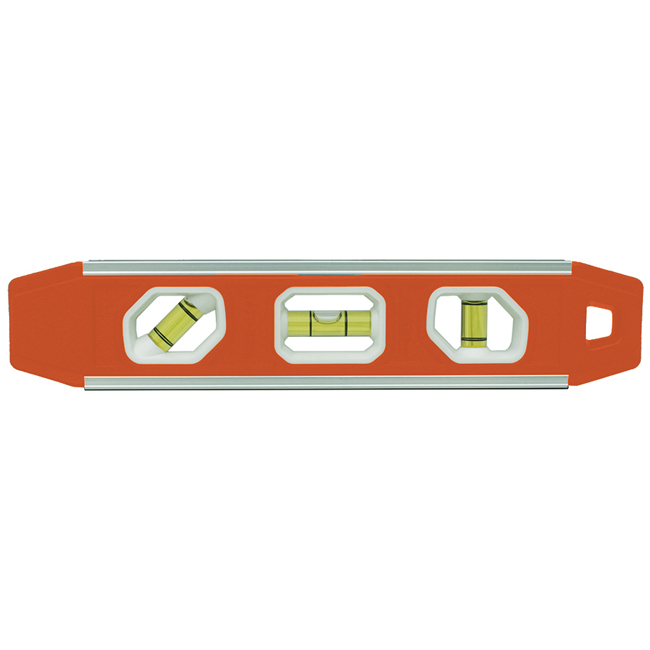

Johnson Level 9 Inch Magnetic Torpedo Level
