MO1008-0000-1111 | 8-channel digital input, 24 V DC, M8
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO1008-0000-1111, with eight digital inputs, acquires binary control signals from the process level and transfers them, with electrical isolation, to the controller. The signal state is shown on the display, the signal interface is established via screw-type M8 connectors.
-

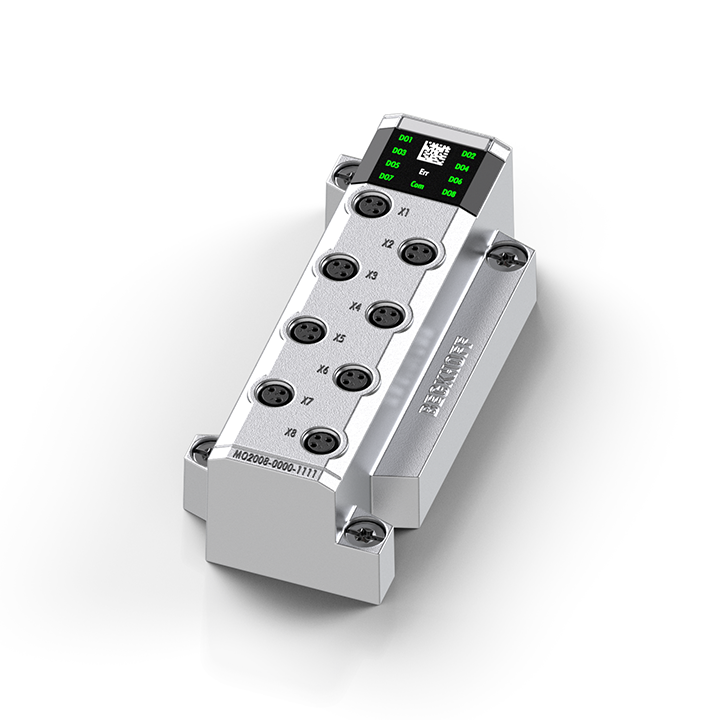

MO2008-0000-1111 | 8-channel digital output, 24В V DC/0.5В A, M8
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO2008-0000-1111 connects the binary control signals from the automation device on to the actuators at the process level. The eight short-circuit proof outputs can each handle output currents up to a maximum of 0.5В A and are limited to a total of 4В A. The signal state is shown on the display, the signal interface is established via screw-type M8 connectors.
-
MO2024-0000-1112 | 4-channel digital output, 24В V DC/2В A, M12
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO2024-0000-1112 connects the binary control signals from the automation device on to the actuators at the process level. The four short-circuit proof outputs can each handle output currents up to a maximum of 2В A and are limited to a total of 2В xВ 4В A. The signal state is shown on the display, the signal interface is established via screw-type M12 connectors.
-
MO2414-0000-1110 | I/O module, 4-channel digital output, pneumatic integration for Festo valves, 0.5 A
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO2414-0000-1110 integrates pneumatic functions by serving as a base module for a Festo valve from the VUVG series (not included in the scope of delivery). The base module provides the valve supply air and the control signals. The hoses leading to the field level are connected directly to the valve in question. Different variants such as 3/2-, 5/2-, or 5/3-way valves can be combined.
-

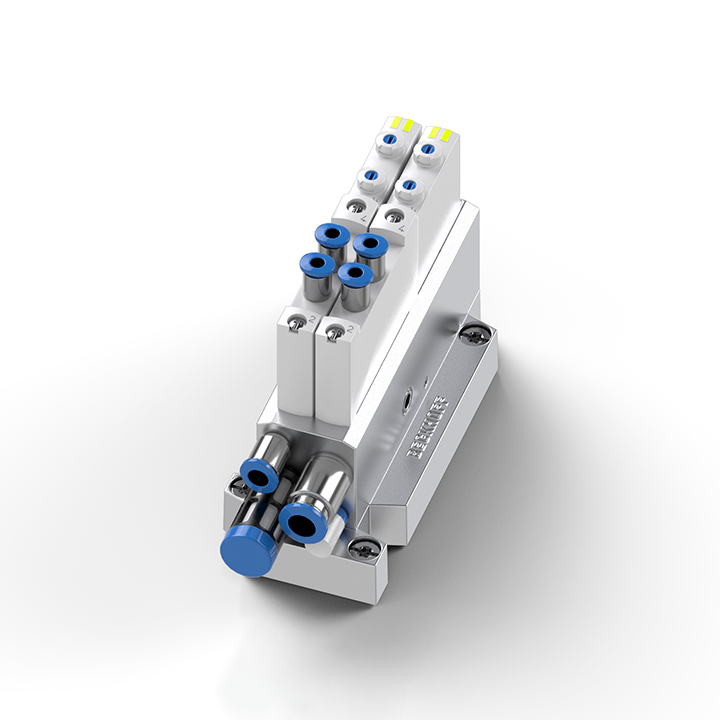

MO2414-0900-1110 | I/O module, 4-channel digital output, pneumatic integration for Festo valves, 0.5 A
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO2414-0900-1110 integrates pneumatic functions by serving as a base module for a Festo valve from the VUVG series (not included in the scope of delivery). The base module provides the valve supply air and the control signals via safe outputs. The hoses leading to the field level are connected directly to the valve in question. Different variants such as 3/2-, 5/2-, or 5/3-way valves can be combined.
-
MO2912-0000-1112 | I/O module, 4-channel digital output, 24В VВ DC, 0.5В A, M12, TwinSAFE, TwinSAFE Logic
0,00 ₽The MO2912-0000-1112 TwinSAFE component has two safe, digital outputs for 24В VВ DC actuators with up to 2В A. The signal state is shown on the display, the signal interface and the power supply for the actuators are established via screw-type M12 connectors.
-

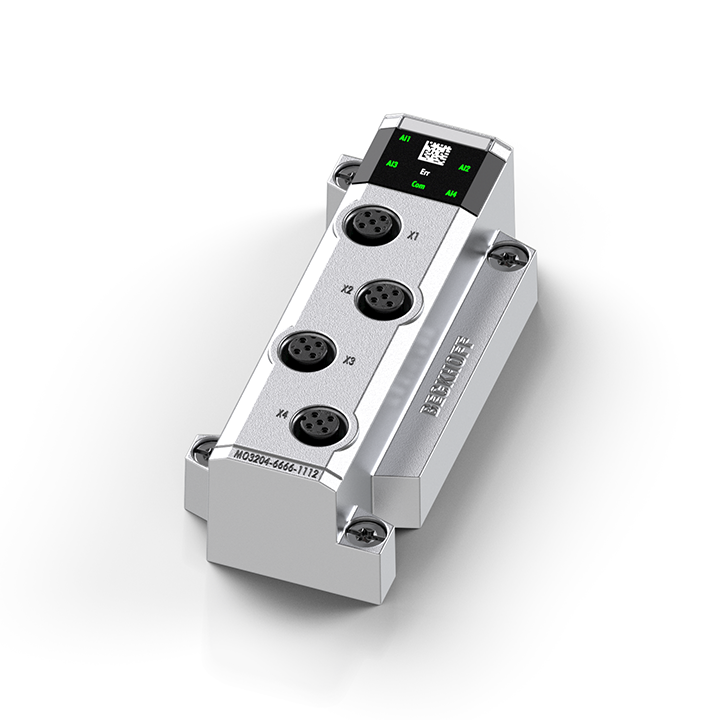

MO3204-6666-1112 | I/O module, 4-channel analog input, temperature, RTD/TC, 16В bit, 1В ksps, M12
0,00 ₽The I/O modules in the MX-System offer a wide choice for all signal types and directions. The MO3204-6666-1112 allows the direct connection of up to four temperature sensors and can measure the resistance and voltage in the specified ranges for each channel. This means that all RTD sensors and thermocouples compatible with the measuring range can be connected. The signal state is shown on the display, the signal interface is established via screw-type M12 connectors.
-

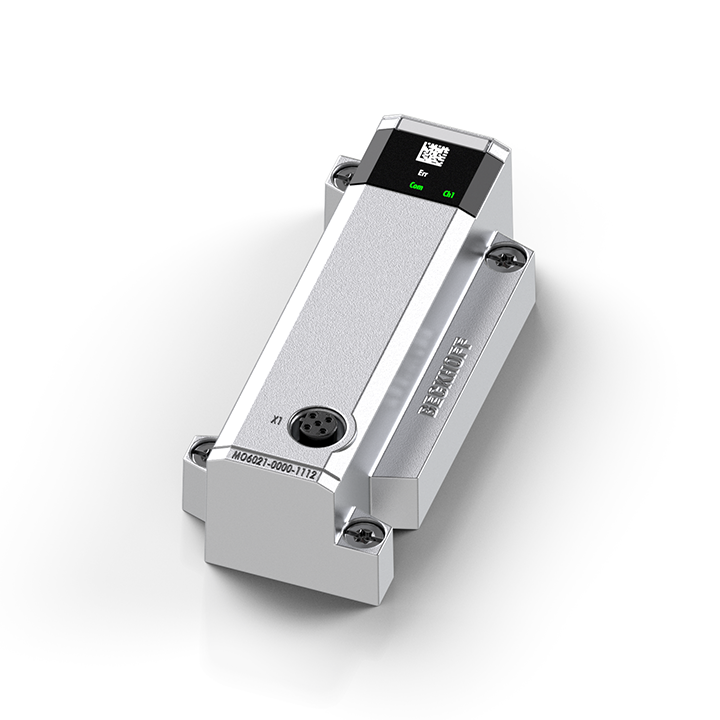

MO6021-0000-1112 | I/O module, 2-channel communication interface, serial, RS422/RS485, M12, B-coded
0,00 ₽The MO6021-0000-1112 provides an RS422 or RS485 interface and guarantees excellent immunity to interference through electrically isolated signals. The active communication channel operates independently of the higher-level EtherCAT system in full duplex mode. In conjunction with the TwinCAT Virtual Serial COM Driver, the module can be used as a normal Windows COM interface. The signal state is shown on the display, the signal interface is established via a screw-type M12 connector.
-

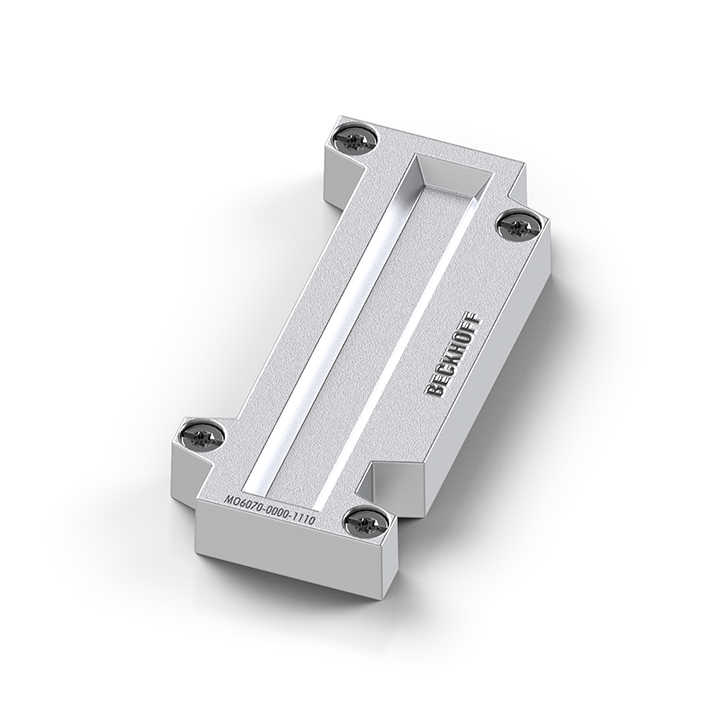

MO6070-0000-1110 | Communication intertface, license key for TwinCATВ 3.1
0,00 ₽The MO6070-0000-1110 license key module is equipped with a local data memory for saving TwinCAT 3.1 license files.
-
MO6071-0000-1110 | Communication intertface, license key for TwinCATВ 3.1
0,00 ₽The MO6071-0000-1110 license key module is equipped with a local data memory for saving TwinCAT 3.1 license files.
-
MO6071-0033-1110 | Интерфейс связи, лицензионный ключ для TwinCATВ 3.1, заводские лицензии
0,00 ₽Модуль лицензионного ключа MO6071-0033-1110 оснащен локальной памятью данных для хранения файлов лицензий TwinCAT 3.1 и содержит лицензии, которые были предварительно установлены на заводе.
-

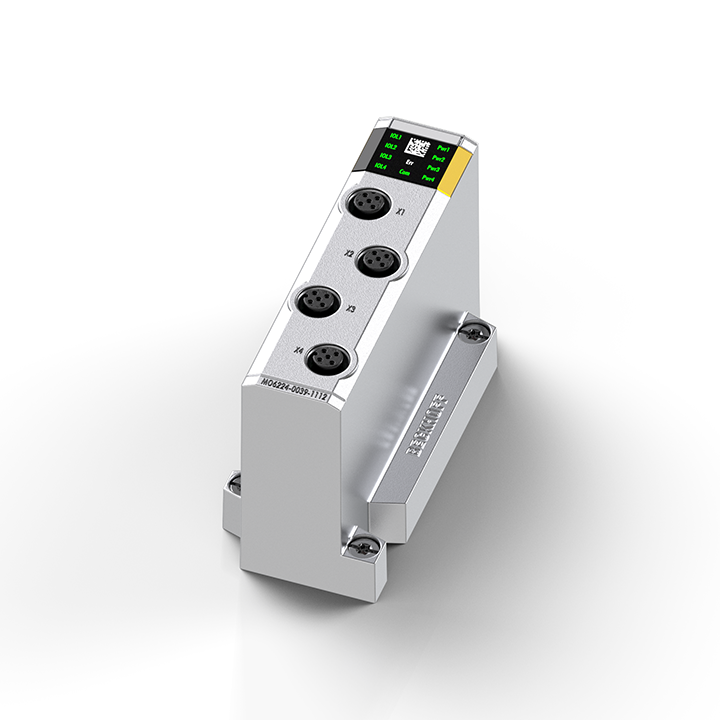

MO6224-0039-1112 | 4-channel communication interface, IO-Link, master, Class B, M12, TwinSAFE
0,00 ₽The MO6224-0039-1112 enables the connection of up to four IO-Link devices – each via an M12 connector. An additional supply voltage, which can be safely switched off, is available on the Class B ports for IO-Link devices with higher power requirements. The parameterization of the IO-Link devices with service data can take place from within TwinCAT via ADS or, conveniently, via the integrated IO-Link configuration tool.
-
MO7221-9018-1114 | 1-channel motion interface, servomotor, 24В VВ DC/7В A, OCT, SafeВ Motion, B17
0,00 ₽The MO7221-9018-1114 allows the direct connection of a 24В V servomotor up to 7В A and the integration of STO/SS1 and SafeMotion functions and TwinSAFE Logic. The encoder is integrated via an absolute value interface. Additionally, with One Cable Technology (OCT), the encoder cable is omitted thanks to the signals being transmitted digitally via the existing motor cable.
-

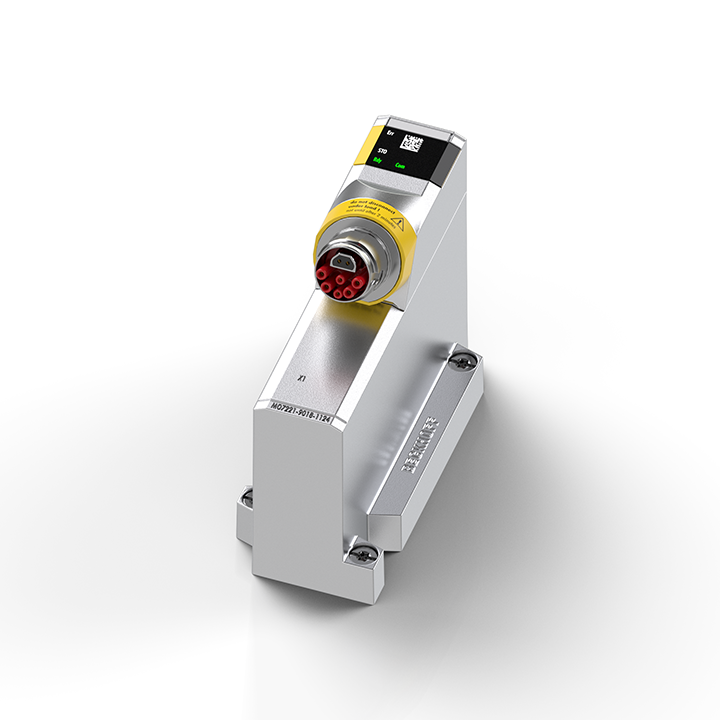

MO7221-9018-1124 | 1-channel motion interface, servomotor, 48В VВ DC/7В A, OCT, SafeВ Motion, B17
0,00 ₽The MO7221-9018-1124 allows the direct connection of a 48В V servomotor up to 7В A and the integration of STO/SS1 and SafeMotion functions and TwinSAFE Logic. The encoder is integrated via an absolute value interface. Additionally, with One Cable Technology (OCT), the encoder cable is omitted thanks to the signals being transmitted digitally via the existing motor cable.
