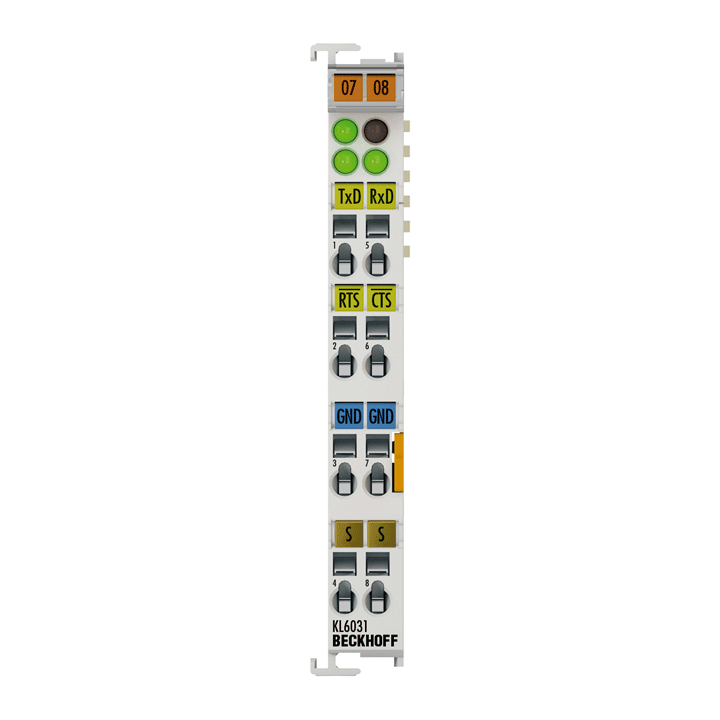

KL6031 | Bus Terminal, 1-channel communication interface, serial, RS232
0,00 ₽The KL6031 serial interface allows devices with an RS232 interface to be connected. The interface operates in conformity with the CCITTВ V.28/DINВ 66В 259-1 standards. The device connected to the terminal communicates with the automation device via the Bus Coupler. The active communication channel operates independently of the higher-level bus system in full duplex mode at up to 115.2В kbaud. The RS232 interface guarantees high immunity to interference through electrically isolated signals.
-

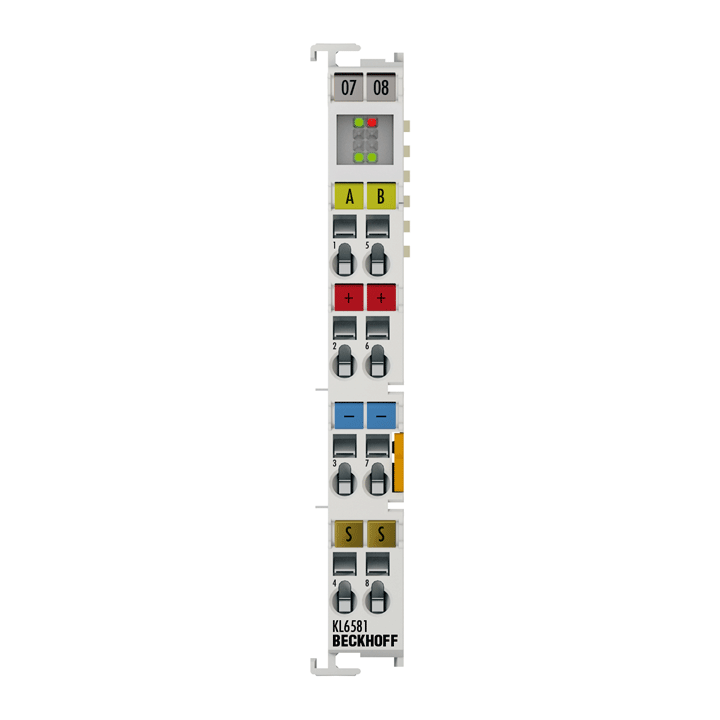

KL6581 | Bus Terminal, 1-channel communication interface, EnOcean, master
0,00 ₽The bidirectional EnOcean technology receives signals from battery-less sensors or transmits data to actuators. With a radio signal range of 30 m, the wiring of buildings can be simplified significantly. The KL6581 EnOcean master terminal is the link between the KL6583 EnOcean transmitter and receiver modules and the application. Up to eight KL6583 EnOcean transmitters and receivers can be connected to a KL6581 EnOcean master terminal. The KL6583 modules are connected to the KL6581 via two wires for the power supply and two wires for the data bus that transmits the EnOcean telegrams. The maximum total length of the data bus is 500 m.
-
KL6781 | Bus Terminal, 1-channel communication interface, M-Bus, master
0,00 ₽The KL6781 M-Bus master terminal enables the direct connection of M-Bus devices. The M-Bus (Meter Bus) is a fieldbus for the acquisition of consumption data from electricity, water, gas or energy meters. The KL6781 does not contain the M-Bus protocol, instead, it converts the data present on the terminal bus into M-Bus compliant physics. 24В byte data are available on the K-bus for this. In conjunction with the TwinCAT M-Bus library, it is possible to work without an external M-Bus gateway, i.e. the M-Bus devices can be connected directly to the KL6781. With a total cable length of 300В m, up to 40 M-Bus devices, so called standard loads, each with a current consumption of 1.5 mA can be connected.
-
KL6xxx | Автовокзалы, связь
0,00 ₽
