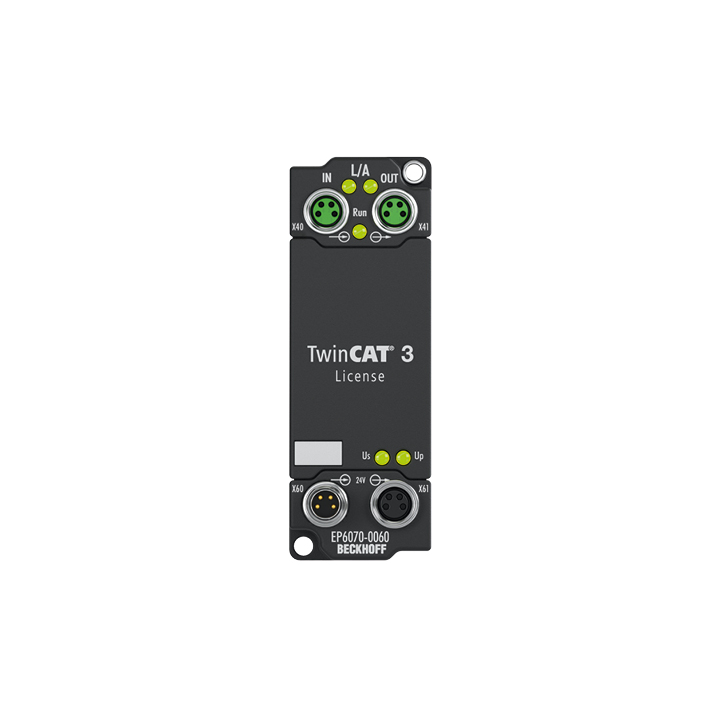

EP6070-0060 | EtherCAT Box, лицензионный ключ для TwinCATВ 3.1
0,00 ₽TwinCAT 3.1 предлагает возможность управления лицензиями ПО TwinCAT непосредственно в распределенных системах через защищенный IP67 модуль EtherCAT Box EP6070-0060. EP6070-0060 воплощает аппаратный лицензионный ключ в модульной системе ввода-вывода EtherCAT. Передача данных осуществляется через EtherCAT.
-

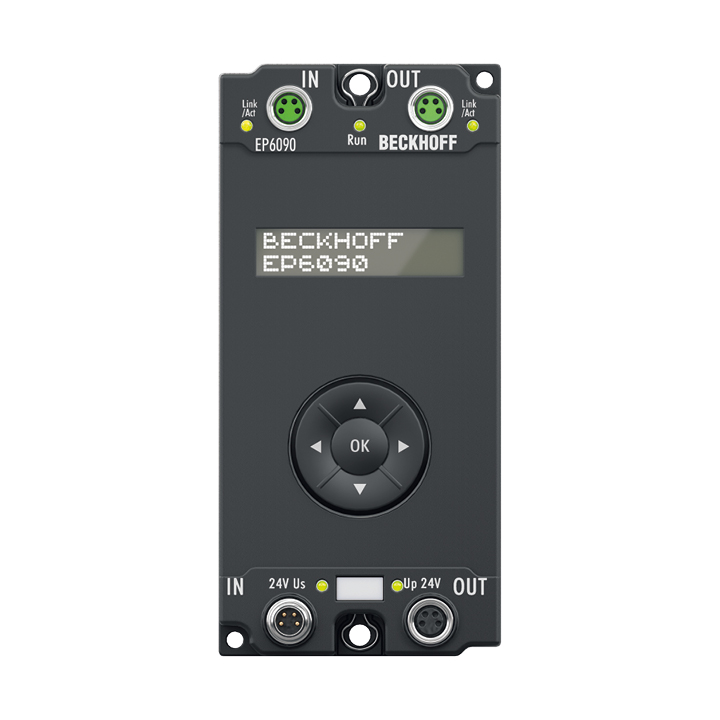

EP6090-0000 | EtherCAT Box, display with navigation switch, operating hours counter
0,00 ₽The EP6090-0000 display box has an illuminated, low-reflection LC display with two lines of 16В characters. It can be used, for example, for displaying status messages or diagnostic information. A non-resettable operating hours counter is integrated and can be displayed and also read out via the controller.
-

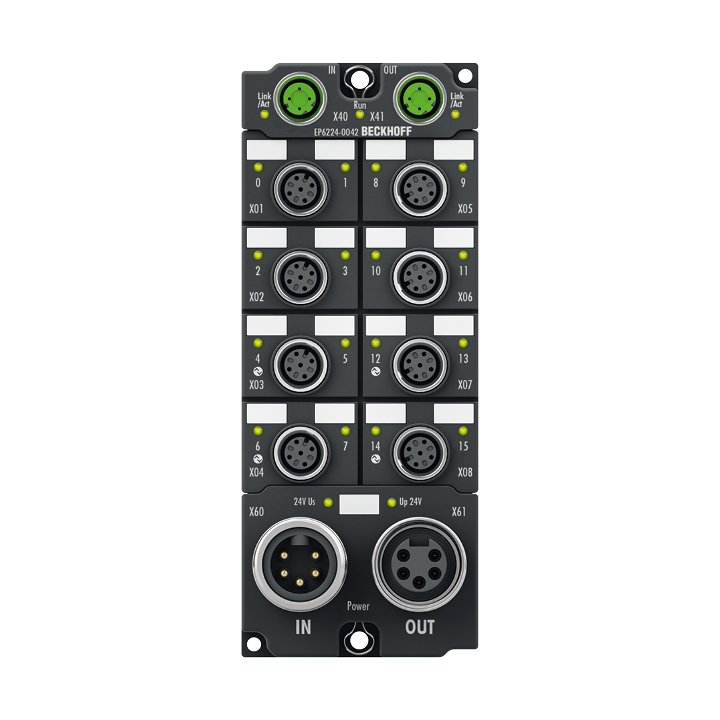

EP6224-0042 | EtherCAT Box, 4-channel communication interface + 8-channel digital input, IO-Link, master, ClassВ A, M12
0,00 ₽Модуль IO-Link EP6224-0042 позволяет подключать до четырех устройств IO-Link, например, исполнительные механизмы, датчики или их комбинации. Кроме того, EP6224-0042 предлагает дополнительные цифровые входы на четырех верхних свободных портах M12. Между блоком и устройством IO-Link используется соединение точка-точка. Параметризация терминала выполняется через ведущее устройство EtherCAT. IO-Link разработан как интеллектуальное соединение между уровнем полевой шины и датчиком, при этом информация о параметризации может обмениваться в двух направлениях через соединение IO-Link. Параметризация устройств IO-Link с помощью служебных данных может быть выполнена из TwinCAT через ADS или очень удобно через встроенный инструмент конфигурации IO-Link.
-

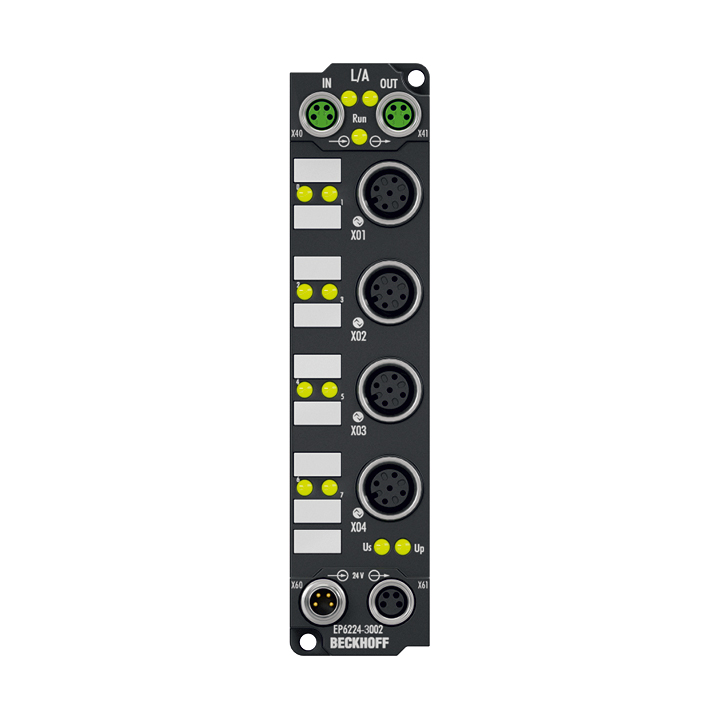

EP6224-3002 | EtherCAT Box, 4-channel communication interface, IO-Link, master, ClassВ B, M12
0,00 ₽The EP6224-3002 IO-Link module enables the connection of up to four IO-Link devices. These can be actuators, sensors or a combination of both. An additional supply voltage is available on the ClassВ B ports for IO-Link devices with higher power requirements. A point-to-point connection is used between the box and the device. The EtherCAT Box is parameterized via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus levels and the sensor, wherein parameterization information can be exchanged bidirectionally via the IO-Link connection. The parameterization of the IO-Link devices with service data can take place from TwinCAT via ADS or, very conveniently, via the integrated IO-Link configuration tool.
-

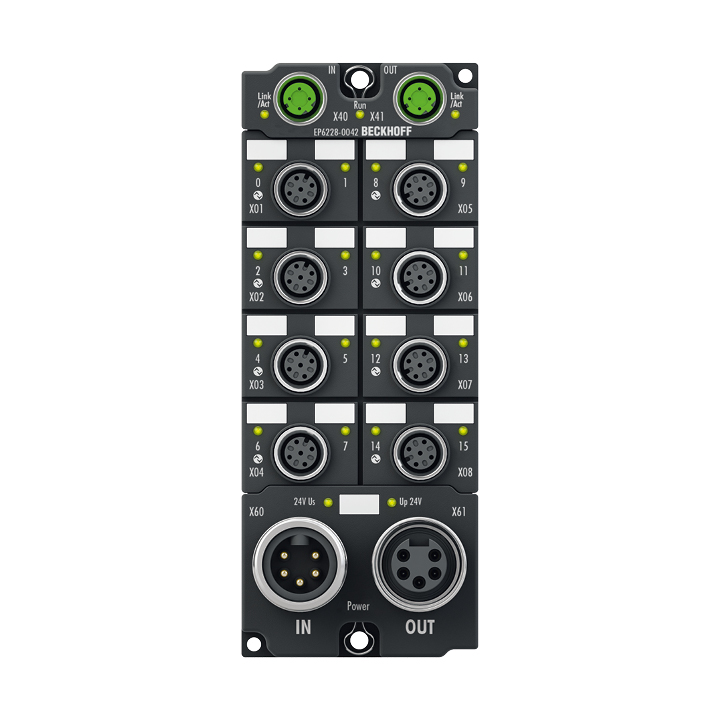

EP6228-0042 | EtherCAT Box, 8-канальный интерфейс связи + 8-канальный цифровой вход, IO-Link, ведущий, ClassВ A, M12
0,00 ₽The EP6228-0042 IO-Link module enables connection of up to eight IO-Link devices, e.g. IO-Link box modules, actuators, sensors or combinations thereof. In addition, the EP6228-0042 offers additional digital inputs on the four Class A master ports. A point-to-point connection is used between the module and the device. The terminal is parameterized via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus level and the sensor, wherein parameterization information can be exchanged bidirectionally via the IO-Link connection. The parameterization of the IO-Link devices with service data can be done from TwinCAT via ADS or very conveniently via the integrated IO-Link configuration tool.
-

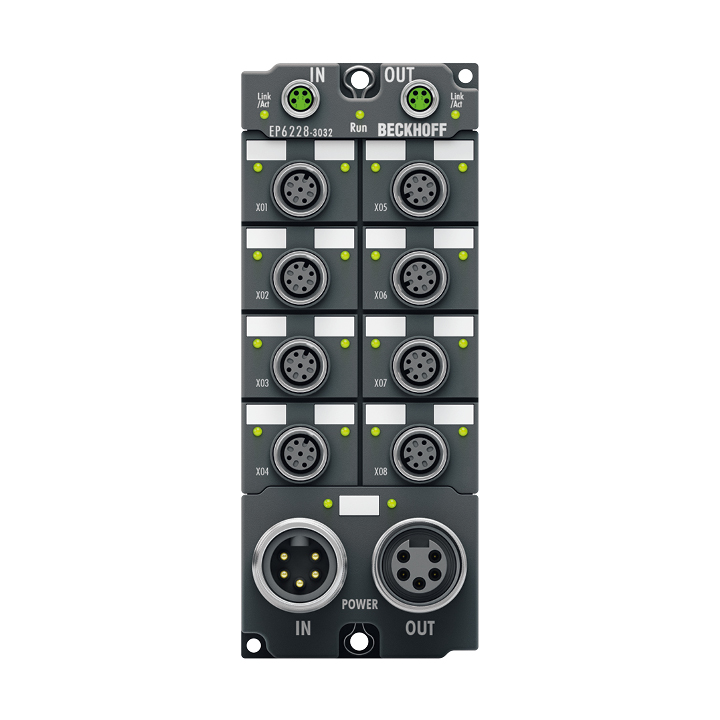

EP6228-3032 | EtherCAT Box, 8-channel communication interface, IO-Link, master, ClassВ B, M12
0,00 ₽The EP6228-3032 IO-Link module enables the connection of up to eight IO-Link devices according to specification V1.1 ClassВ B. These can be IO-Link Box modules, actuators, sensors or a combination of both. A point-to-point connection is used between the module and the device. The EtherCAT Box is parameterized via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus level and connected sensors, enabling the bidirectional exchange of parameterization data via the IO-Link connection. The IO-Link device can be parameterized with service data from TwinCAT via ADS and also very conveniently using the integrated IO-Link configuration tool.
-

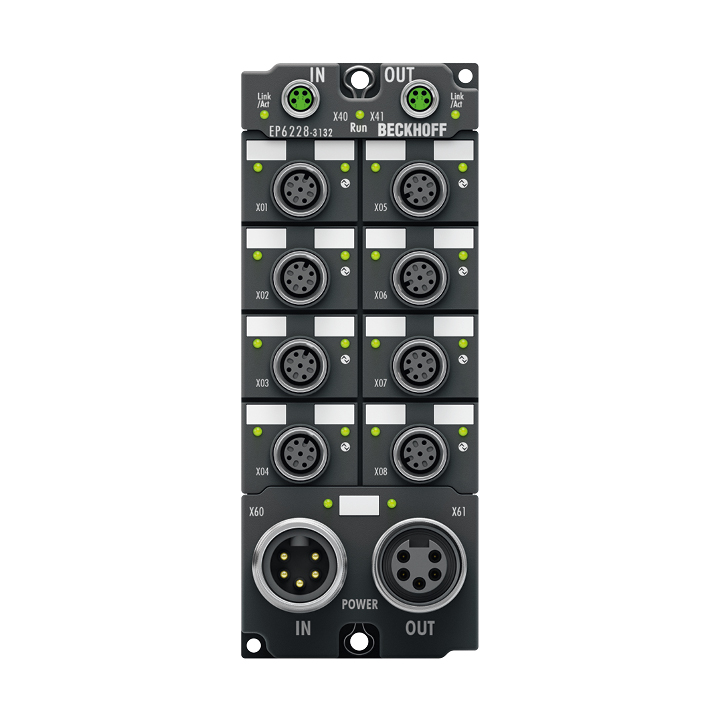

EP6228-3132 | EtherCAT Box, 8-channel communication interface + 4-channel digital input, IO-Link, master, ClassВ A,В ClassВ B, M12
0,00 ₽The EP6228-3132 IO-Link module enables connection of up to eight IO-Link devices, e.g. IO-Link box modules, actuators, sensors or combinations thereof. The EP6228-3132 has 4В x ClassВ A and 4В x ClassВ B ports. The ClassВ B ports provide an additional supply voltage for IO-Link devices with higher power requirements. The EP6228-3132 additionally offers further digital inputs on the four ClassВ A master ports. A point-to-point connection is used between the module and the device. The terminal is parameterized via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus level and the sensor, wherein parameterization information can be exchanged bidirectionally via the IO-Link connection. The parameterization of the IO-Link devices can be done from TwinCAT via ADS or very conveniently via the integrated IO-Link configuration tool.
-
EP6601-0002 | EtherCAT Box, 1-port communication interface, Ethernet switch port
0,00 ₽The EP6601-0002 Ethernet switch port module is used for the decentralized connection of Ethernet devices to the EtherCAT Box network. The EtherCAT system relays the Ethernet communication of the connected devices fully transparent and collision-free.
