EP2008-0001 | EtherCAT Box, 8-канальный цифровой выход, 24 В В постоянного тока, 0,5 В А, M8Предпочтительный тип
0,00 ₽The EP2008-0001 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 4В A.
-

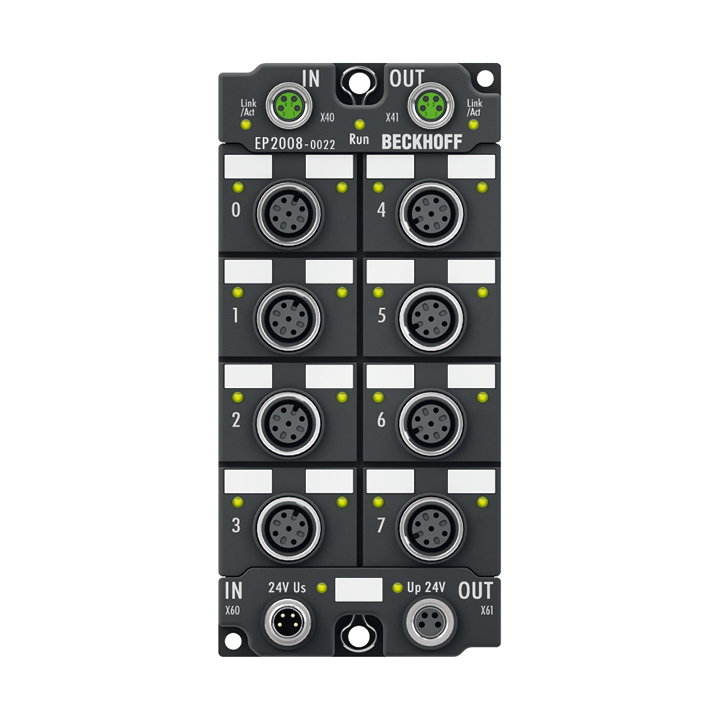

EP2008-0022 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The EP2008-0022 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 4В A.
-
EP2038-0001 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 2В A, M8, with diagnostics
0,00 ₽The EP2038-0001 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 2.0В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 4В A.
-
EP2038-0002 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 2В A, M12, with diagnostics
0,00 ₽The EP2038-0002 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 2.0В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 4В A.
-

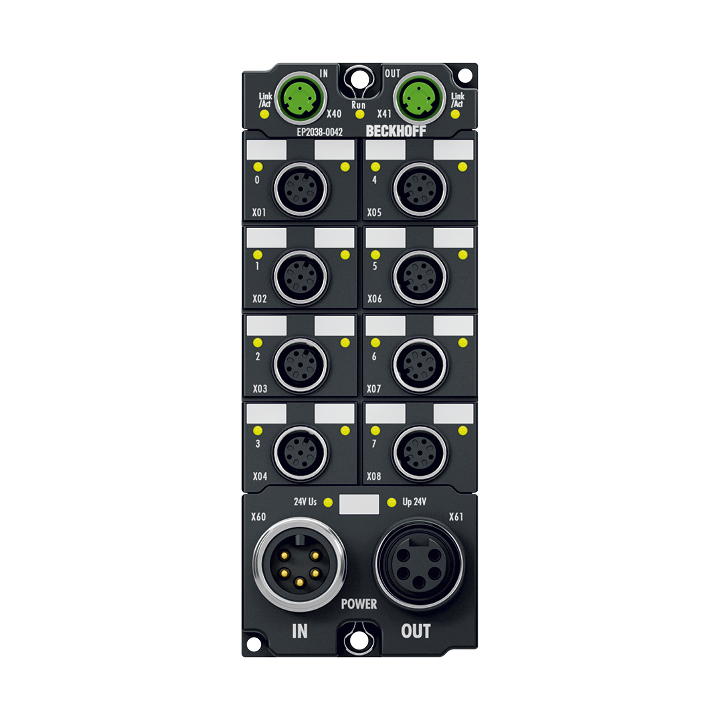

EP2038-0042 | EtherCAT Box, 8-channel digital output, 24В VВ DC, 2В A, M12, with diagnostics
0,00 ₽The EP2038-0042 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The eight outputs each process an output current of up to max. 2.4 A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 16В A. The signal state of the channels is indicated by LEDs. The signals are connected via M12 screw type connectors. One channel is available per M12 socket. Each output channel reports an open load or short-circuit error to the PLC via diagnostic. This diagnostic feature can be switched off channel by channel. Module-related undervoltage detection of the supply voltage takes place. The EP2038-0042 has M12 D-coded EtherCAT connectors and 7/8′ connectors for the power supply.
-

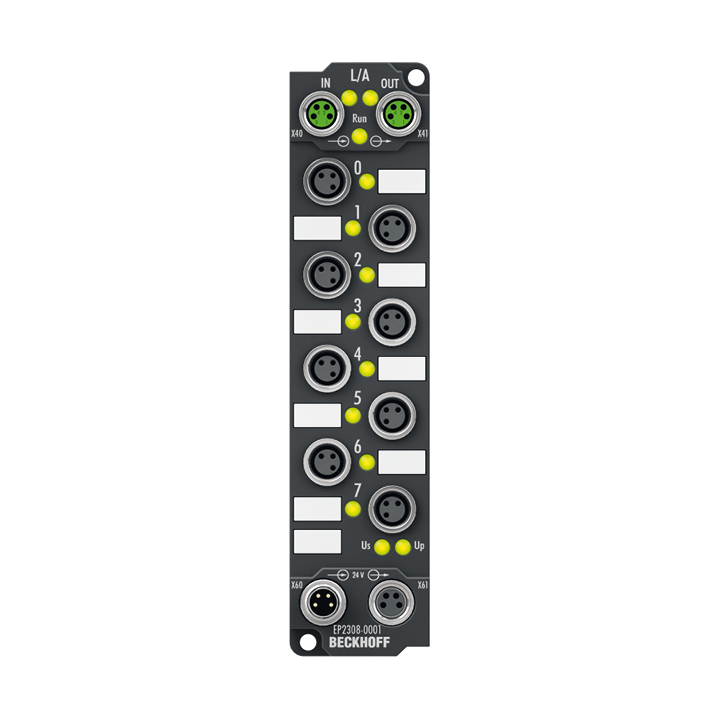

EP2308-0001 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The EP2308-0001 EtherCAT Box combines four digital inputs (four M8 sockets at the top) and four digital outputs (four M8 sockets at the bottom) in one device. The inputs have a filter of 3.0В ms. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is indicated by LEDs. The signals are connected via screw type M8 connectors.
-
EP2308-0002 | EtherCAT Box, 4-channel digital input + 4-channel digital output, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EP2308-0002 EtherCAT Box combines four digital inputs (two M12 sockets at the top) and four digital outputs (two M12 sockets at the bottom) in one device. The inputs have a filter of 3.0В ms. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is indicated by LEDs. The signals are connected via screw type M12 connectors.
-
EP2316-0003 | EtherCAT Box, 8-channel digital input + 8-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, IP20 connector
0,00 ₽The EP2316-0003 EtherCAT Box combines eight digital inputs (upper socket connector) and eight digital outputs (lower socket connector) in a single device. The inputs have a filter of 10В Вµs. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is displayed via the optional plug connector. The signal connection is made via spring-cage connectors, optionally available in 1- and 3-pole versions.
-
EP2316-0008 | EtherCAT Box, 8-channel digital input + 8-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, D-sub
0,00 ₽The EP2316-0008 EtherCAT Box combines eight digital inputs (upper socket connector) and eight digital outputs (lower socket connector) in a single device. The inputs have a filter of 10В Вµs. The outputs process load currents up to 0.5В A and are short-circuit-proof and protected against reverse polarity. The signal status is displayed via the optional plug connector. The signal connection is made via spring-cage connectors, optionally available in 1- and 3-pole versions. The module is delivered without connectors.
-

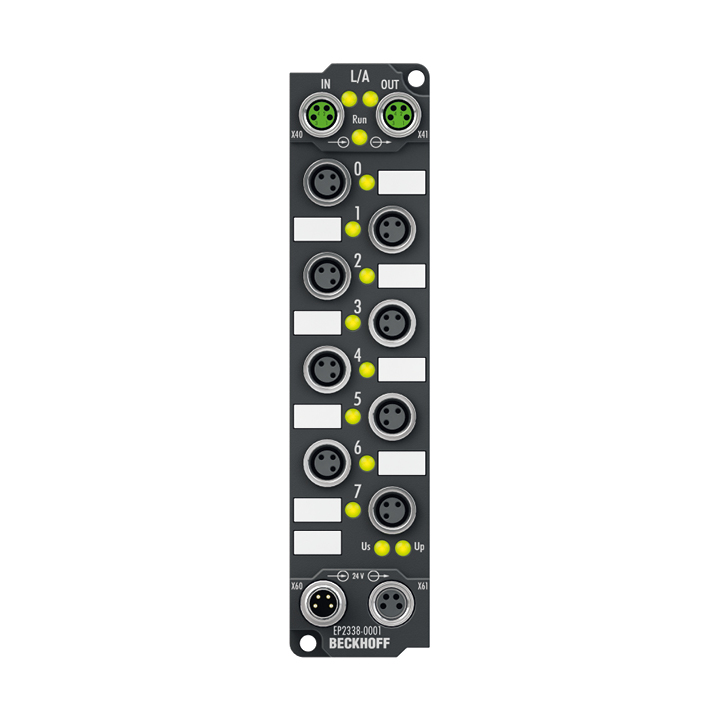

EP2338-0001 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 10В Вµs, 0.5В A, M8Preferred type
0,00 ₽The EP2338-0001 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 4 of the M8) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

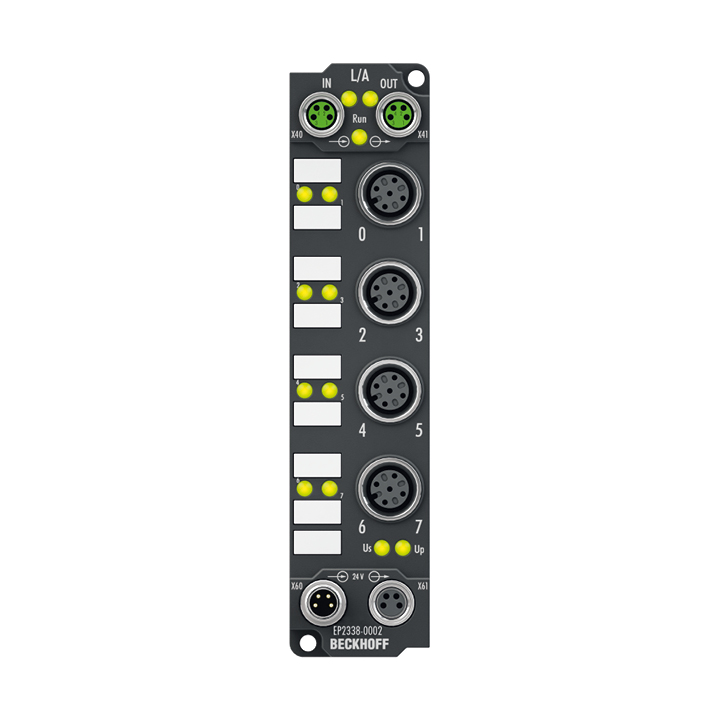

EP2338-0002 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 10В Вµs, 0.5В A, M12
0,00 ₽The EP2338-0002 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 2 and 4 of the M12) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-
EP2338-1001 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8
0,00 ₽The EP2338-1001 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 4 of the M8) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-
EP2338-1002 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EP2338-1002 EtherCAT Box has eight digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 2 and 4 of the M12) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

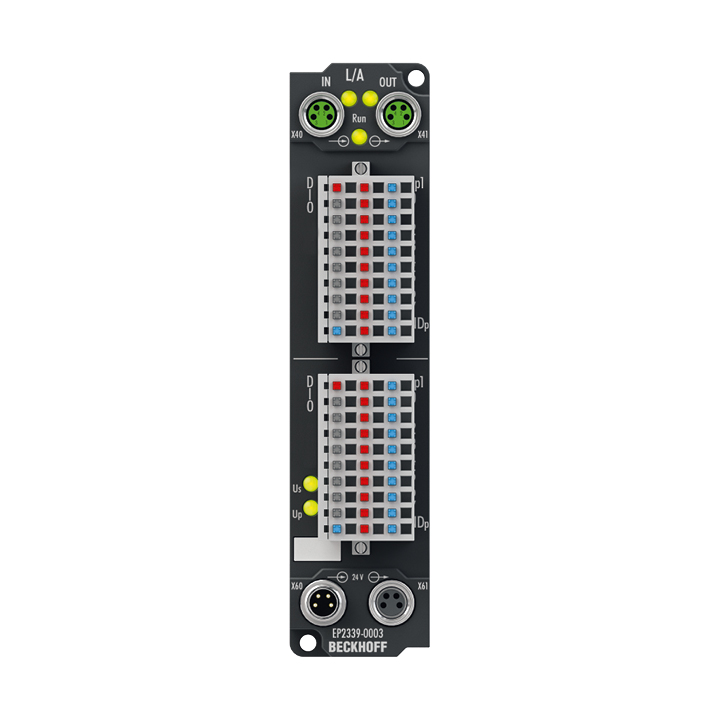

EP2339-0003 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, IP20 connector
0,00 ₽The EP2339-0003 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

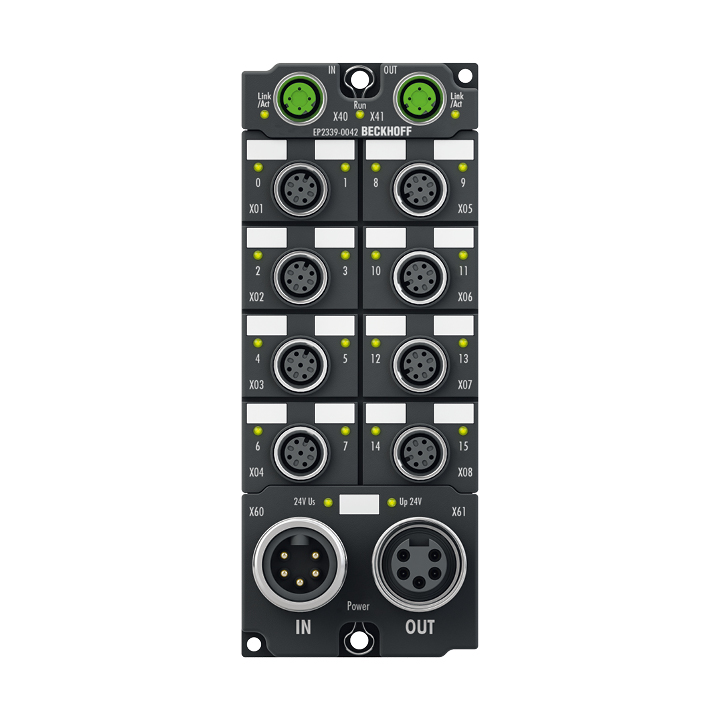

EP2339-0042 | EtherCAT Box, 16-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M12
0,00 ₽The EP2339-0042 EtherCAT Box has 16 digital channels that can each be operated as inputs or outputs. It is not necessary to configure whether a channel (pin 2 and 4 of the M12) is to be used as input or output, the input circuit is permanently connected internally to the output driver, so that a set output is automatically displayed in the input process image.
-

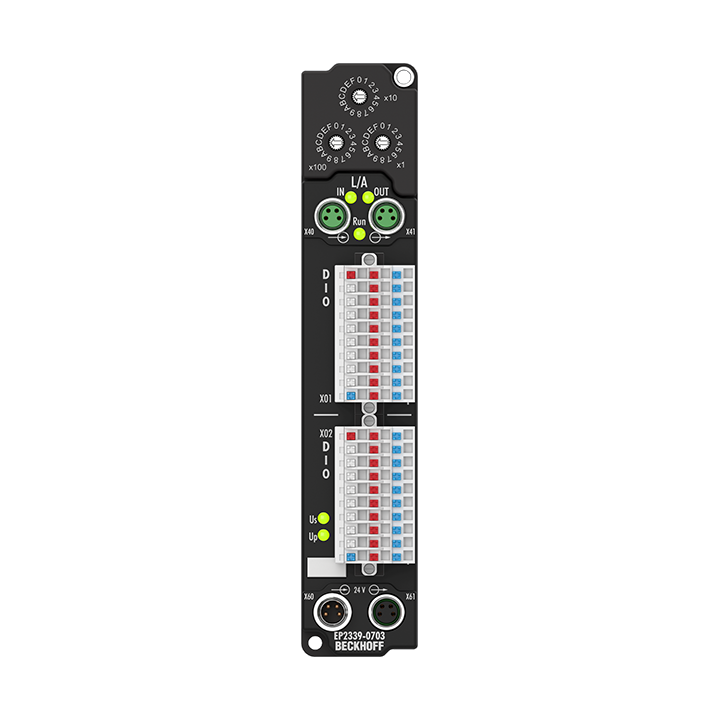

EP2339-0703 | EtherCAT Box, 16-channel digital combi, ID switch, 24В VВ DC, 3В ms, 0.5В A, IP20 connectorNew
0,00 ₽The EP2339-0703 EtherCAT Box has 16 digital channels, which can each be operated as an input or output. It is not necessary to configure whether a channel is to be used as an input or output, the input circuit is internally permanently connected to the output driver so that a set output is automatically displayed in the input process image.
-
EP2349-0022 | EtherCAT Box, 16-канальный цифровой комби, 24 В В постоянного тока, 10 В мкс, 0,5 В А, M12
0,00 ₽EtherCAT Box EP2349-0022 имеет 16 цифровых каналов, каждый из которых может работать как вход или выход. Нет необходимости настраивать, будет ли канал (контакты 2 и 4 M12) использоваться как вход или выход, входная цепь постоянно подключена внутри к выходному драйверу, так что установленный выход автоматически отображается в образе входного процесса.
-

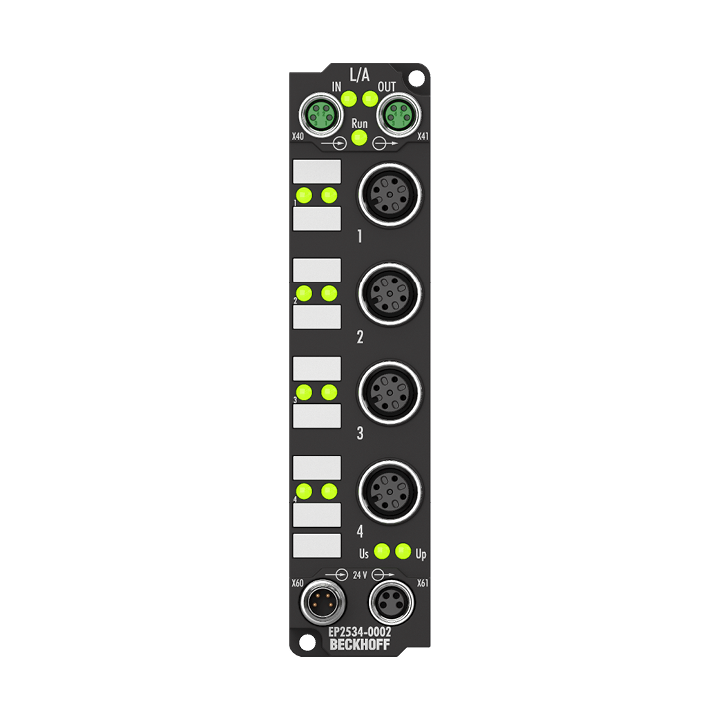

EP2534-0002 | EtherCAT Box, 4-канальный выход ШИМ, 24 В В постоянного тока, 2 В А, M12, управляемый токомНовый
0,00 ₽EtherCAT Box EP2534-0002 регулирует выходной ток путем широтно-импульсного управления периферийным напряжением на четырех каналах. Значения тока от 0 до максимального выходного тока 2 В А задаются устройством автоматизации с помощью 16-битного значения. Суммарный ток всех выходов ограничен 4 В А. Выходные каскады защищены от перегрузки. Состояние сигнала каналов отображается светодиодами. Сигнальное соединение устанавливается через винтовые разъемы M12. Один канал доступен на гнездо M12.
-

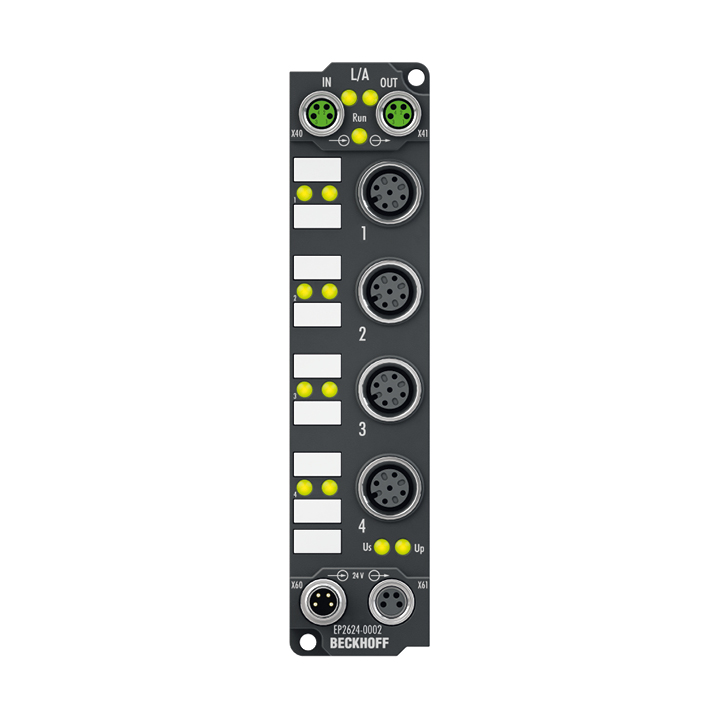

EP2624-0002 | EtherCAT Box, 4-channel relay output, 25В VВ AC, 30В VВ DC, 0.5В AВ AC, 2В AВ DC, M12
0,00 ₽The EP2624-0002 EtherCAT Box has four relays, each with one contact, which can be controlled potential-free by the PLC via EtherCAT. The relay contacts can each be used up to 25 V AC or 30 V DC. The signal status of the individual channels is indicated by LEDs.
-

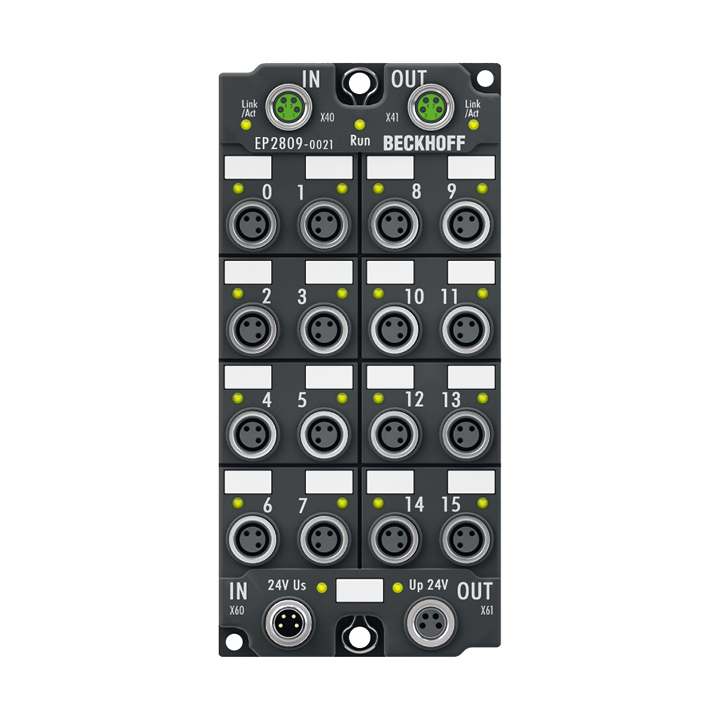

EP2809-0021 | EtherCAT Box, 16-канальный цифровой выход, 24В В постоянного тока, 0,5В А, M8
0,00 ₽EtherCAT Box EP2809-0021 предназначен для обработки цифровых/бинарных сигналов. Он коммутирует двоичные сигналы управления от устройства автоматизации к исполнительным механизмам на уровне процесса. Выходы обрабатывают выходной ток до макс. 0,5 В А. Возможна кратковременная перегрузка. Выходы защищены от короткого замыкания. Общий ток всех выходов ограничен 4 В А.
-
EP2809-0022 | EtherCAT Box, 16-channel digital output, 24В VВ DC, 0.5В A, M12
0,00 ₽The EP2809-0022 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 4В A.
-

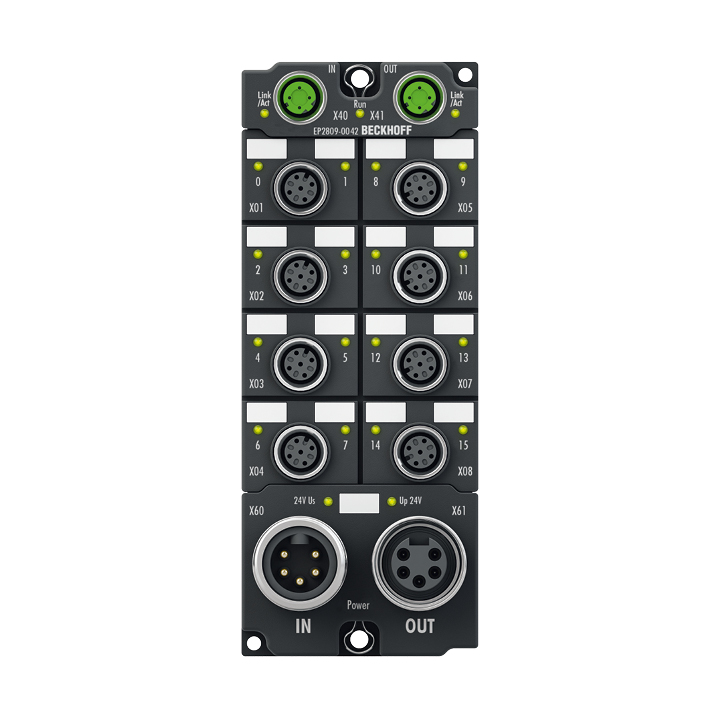

EP2809-0042 | EtherCAT Box, 16-канальный цифровой выход, 24 В В постоянного тока, 0,5 В А, M12
0,00 ₽The EP2809-0042 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5В A. A short-term overload is possible. The outputs are short-circuit proof. The total current of all outputs is limited to 16В A. 7/8′ connectors are used for the input/output of the supply voltage.
-

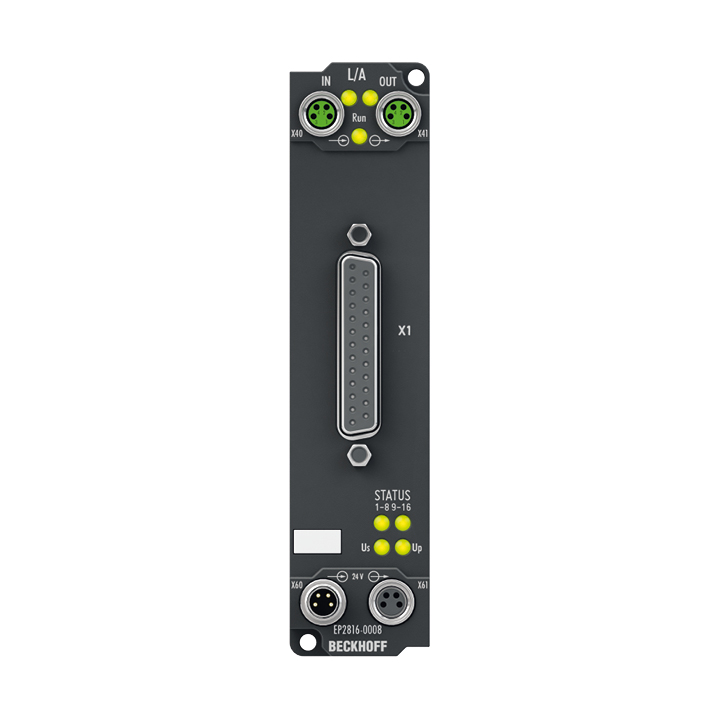

EP2816-0008 | EtherCAT Box, 16-канальный цифровой выход, 24 В В постоянного тока, 0,5 В А, D-sub
0,00 ₽Модуль EtherCAT EP2816-0008 предназначен для обработки цифровых/бинарных сигналов. Он коммутирует двоичные сигналы управления от устройства автоматизации к исполнительным механизмам на уровне процесса. Выходы обрабатывают выходной ток до макс. 0,5 В А. Возможна кратковременная перегрузка. Выходы защищены от короткого замыкания. Общий ток всех выходов ограничен 4 В А.
