ATH2xxx | XTS motor modules

The motor modules with the product designation AT2001 largely correspond to the motor modules with the product designation AT2000. In addition, they each have a fixed connection cable for the supply of power and communication. These 5 m-long connection cables enable a particularly compact design compared to the pluggable supply cable. With a length of 250 mm, the motor modules with power supply are the shortest version of a supply segment. By attaching motor modules without a supply, straight or curved track layouts, the supply segment can be extended up to 3 m. A complete XTS system consists of at least one supply segment, however, several supply segments of different lengths can also be used in an XTS system. The length of a supply segment is primarily determined by the mechanical motion profile of the movers and thus the electrical power consumption as well as the number of movers on the respective route.

The motor modules with the product designation AT2041 largely correspond to the motor modules with the product designation AT2040. In addition, they each have a fixed connection cable for the supply of power and communication. These 5В m-long connection cables enable a particularly compact design compared to the pluggable supply cable. With a length of 250В mm, the motor modules with power supply are the shortest version of a supply segment. By attaching motor modules without a supply, straight and curved track layouts, the supply segment can be extended up to 3В m. A complete XTS system consists of at least one supply segment, however, several supply segments of different lengths can also be used in an XTS system. The length of a supply segment is primarily determined by the mechanical motion profile of the movers and thus the electrical power consumption as well as the number of movers on the respective route.

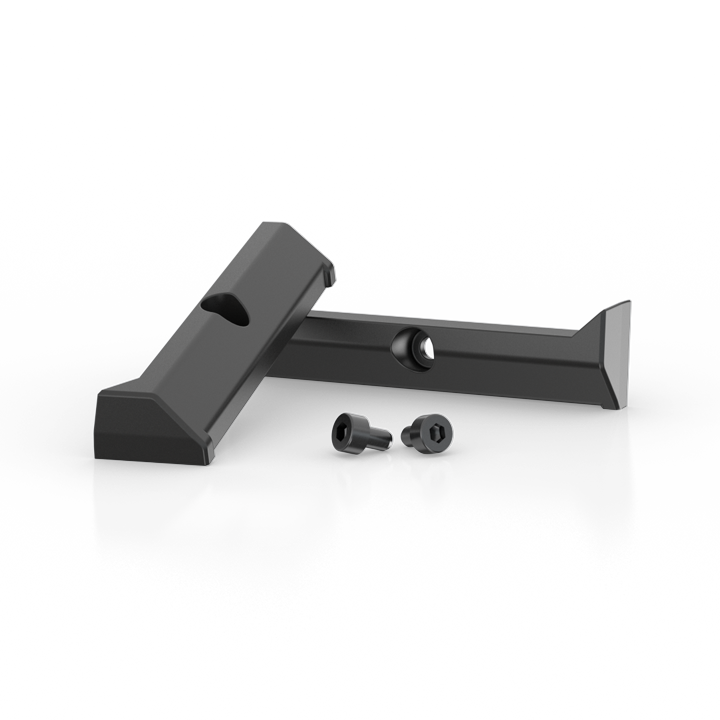

The AT2200 motor module is an element for setting up straight XTS track sections. Simply plugging them together is sufficient to establish an electrical connection between these motor modules. With one power supply, a maximum of 6 motor modules can be plugged together one after the other in a 3В m long infeed line. The standardized length of 500В mm enables finely scalable system lengths and represents an economical alternative to standard motor modules.

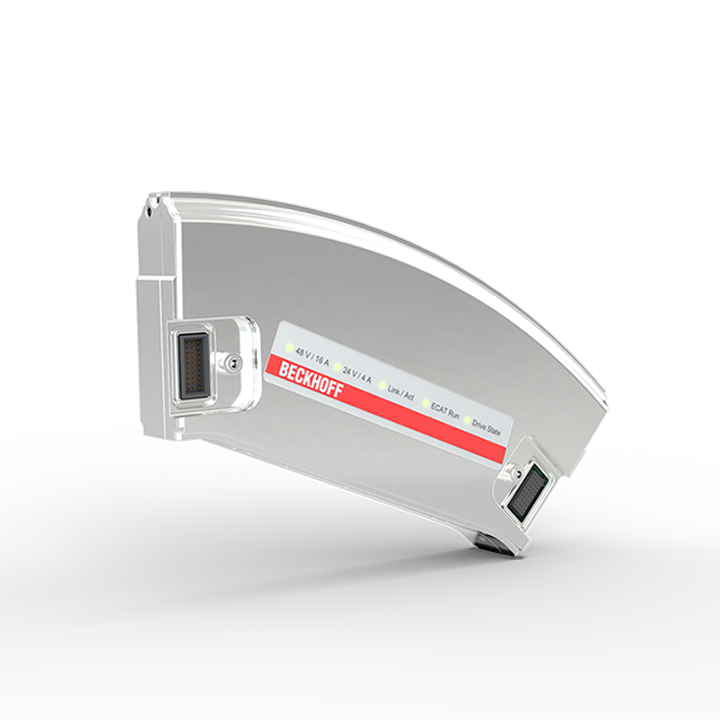

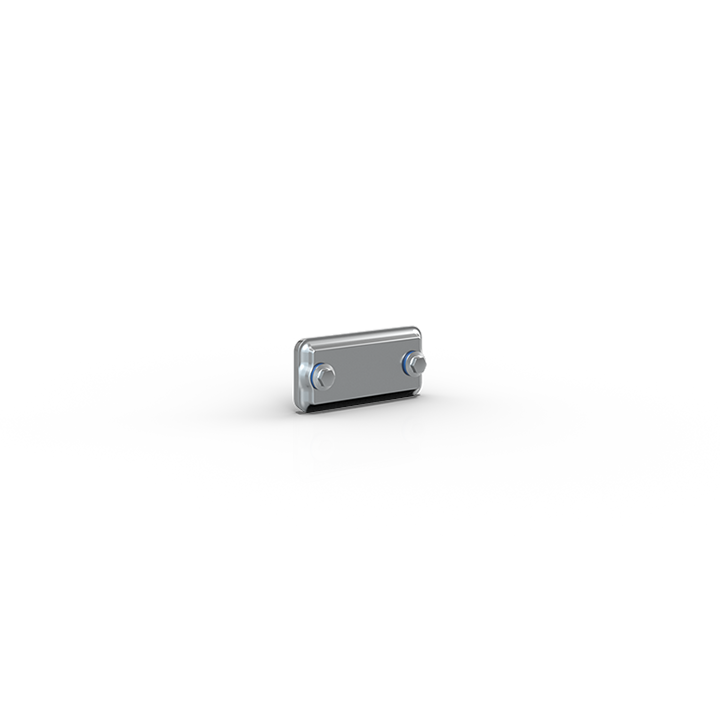

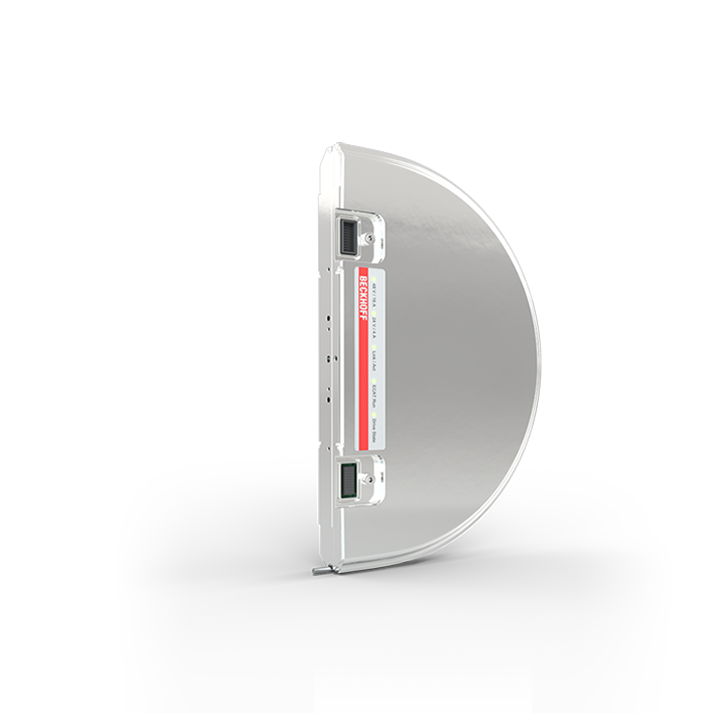

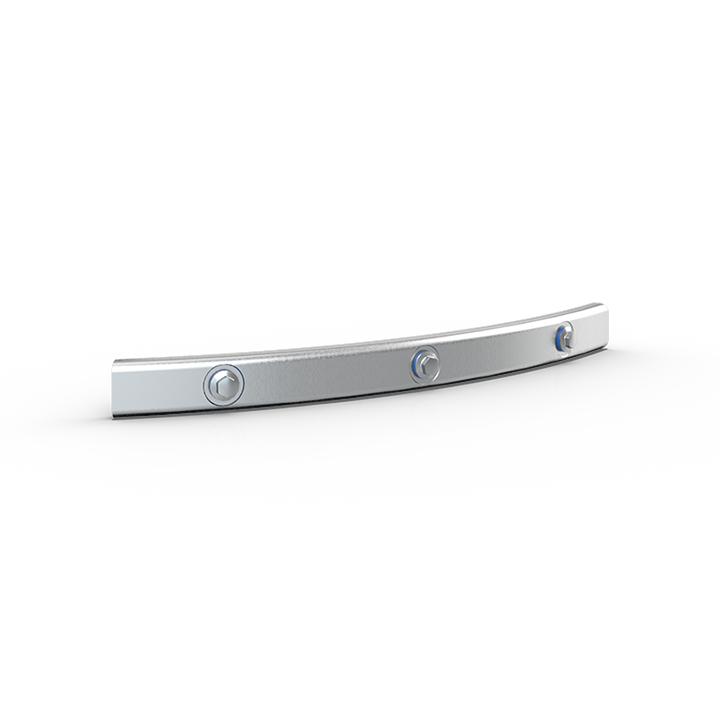

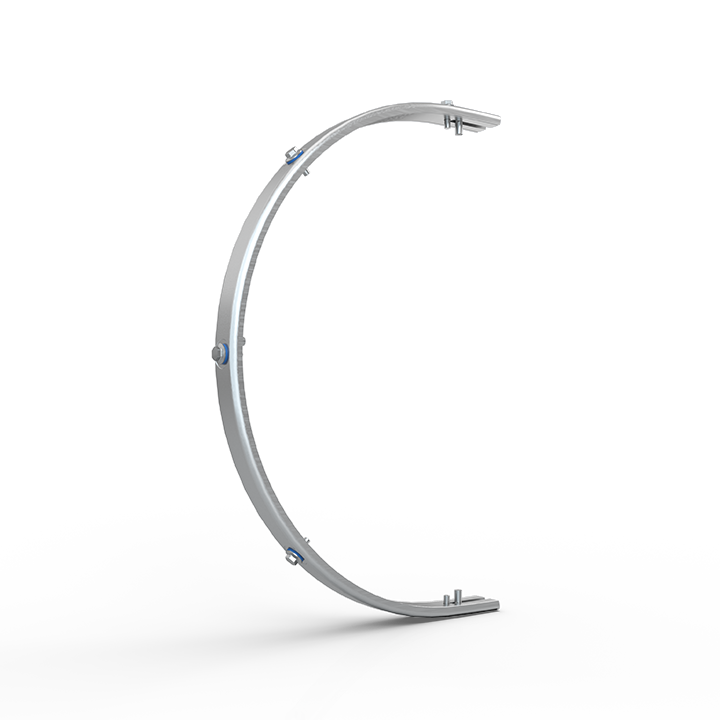

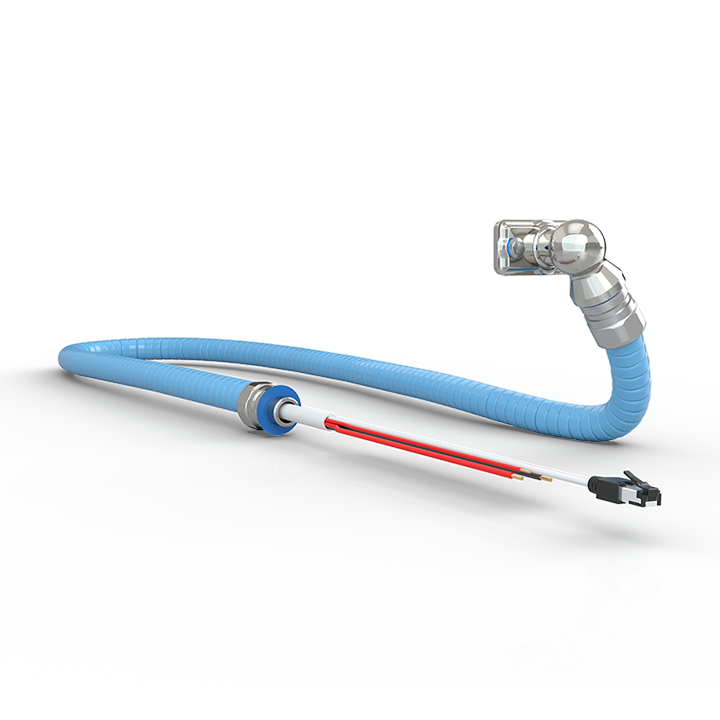

The motor modules with the product designation ATH204x are elements for the construction of curved XTS track sections for demanding environmental conditions. They represent a 45В° curve segment (outside curve) of a circle with a diameter of 637 mm. Via lateral plug-in contacts for the transmission of power and communication, a connection between the motor modules can be established very simply with the help of a cover. The cover contains the necessary contacts for the connection of two motor modules and is optionally also available with a supply cable in order to serve as a power supply point. The subsequent relocation of the power supply points or a change in the number of power supplies is possible without dismounting the motor modules.
