ZA9670-BE

General specification Core Material: Ferrite Weight: 2.73 – 2.8 g Packaging: 350/13 reel Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 10.4 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

1125,00 ₽

Артикул: ZA9670-BED Категорий: No Opto, Power Transformers, Products, Transformers, ZA9670-BE, ZA967x

Описание

Specifications

Electrical specifications at 25C.

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H) 2	DCR max (Ω)		Leakage Inductance max (H) 3	Turns Ratio	Isolation Voltage (Vrms) 4
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Inductance min at 5 A (H) 2	Pri	Sec	Leakage Inductance max (H) 3	Pri : Sec	Isolation Voltage (Vrms) 4
ZA9670-BED	9.0	8.1	0.0470	0.0110	0.400	1 : 0.25	1500

Каталог

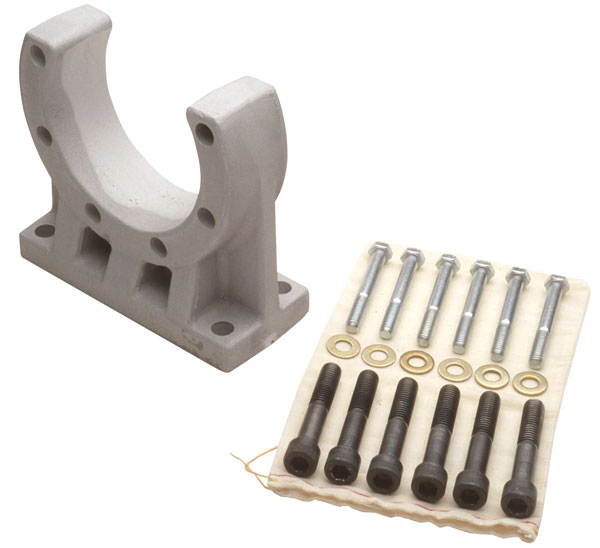

AB Chance Capstan C-Bracket with Mounting Bolts
