YA9171-CE

General specification Core Material: Ferrite Weight: 6.17 – 6.23 g Packaging: 175/13 reel Plastic tape: 32 mm wide, 0.6 mm thick, 28 mm pocket spacing, 13.4 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

900,00 ₽

Артикул: YA9171-CED Категорий: No Opto, Power Transformers, Products, Transformers, YA9171-CE, Я917x

Описание

Specifications

Electrical specifications at 25C.

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	DCR max (Ω)		Leakage Inductance max (H) 3	Turns Ratio	Isolation Voltage (Vrms) 4
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	Pri	Sec	Leakage Inductance max (H) 3	Pri : Sec	Isolation Voltage (Vrms) 4
YA9171-CED	1.5	24.0	0.009	0.014	0.082	1 : 1	1500

Каталог

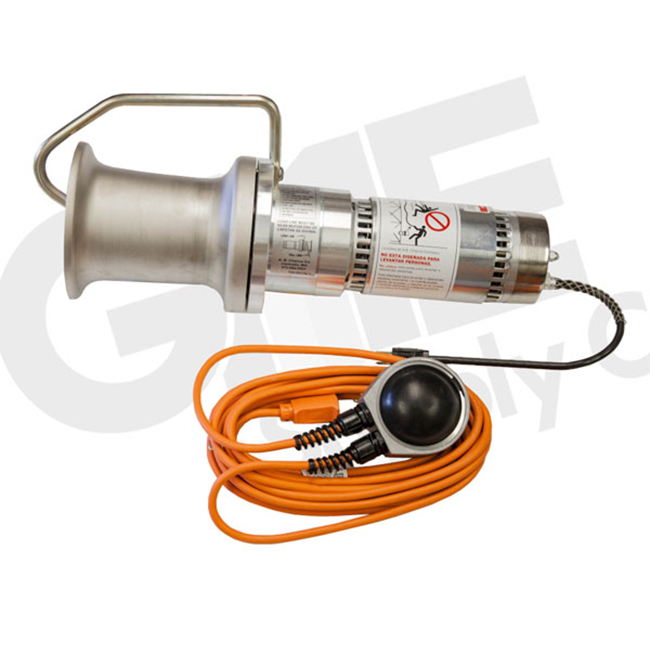

AB Chance 1000 lb Capacity Capstan Hoist
