YA9127-BE

General specification Core Material: Ferrite Weight: 2.65 – 2.75 g Packaging: 350/13 reel Plastic tape: 24 mm wide, 0.50 mm thick, 16 mm pocket spacing, 10.35 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

900,00 ₽

Артикул: YA9127-BED Категорий: No Opto, Power Transformers, Products, Transformers, YA9127-BE, Я912x

Описание

Specifications

Electrical specifications at 25C.

18 – 60 V input

Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	DCR max (Ω)		Leakage Inductance max (H) 3	Turns Ratio	Isolation Voltage (Vrms) 4
Part number (Hover for schematics)	Inductance at 0A (H) 1 (Tolerance: &plusmn,10%)	Isat (A) 2	Pri	Sec	Leakage Inductance max (H) 3	Pri : Sec	Isolation Voltage (Vrms) 4
YA9127-BED	40	2.3	0.095	0.090	0.353	1 : 0.75	1500

Каталог

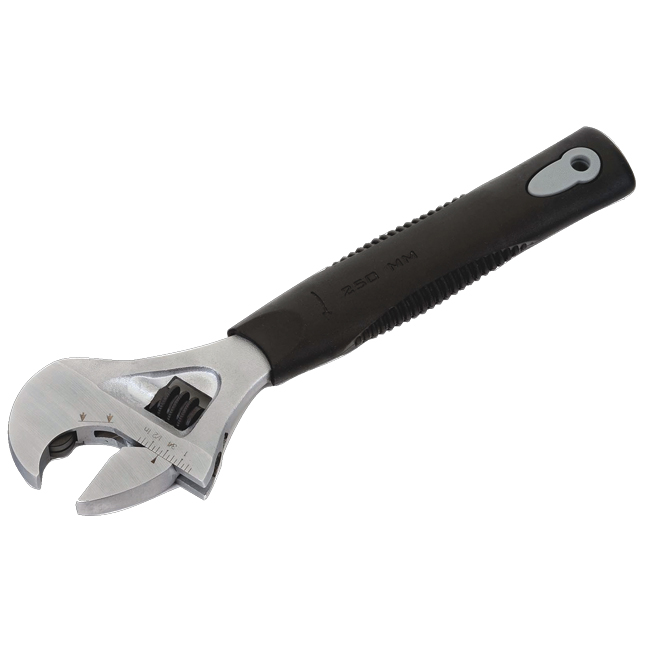

Snap On Williams Adjustable Comfort Grip Wrench

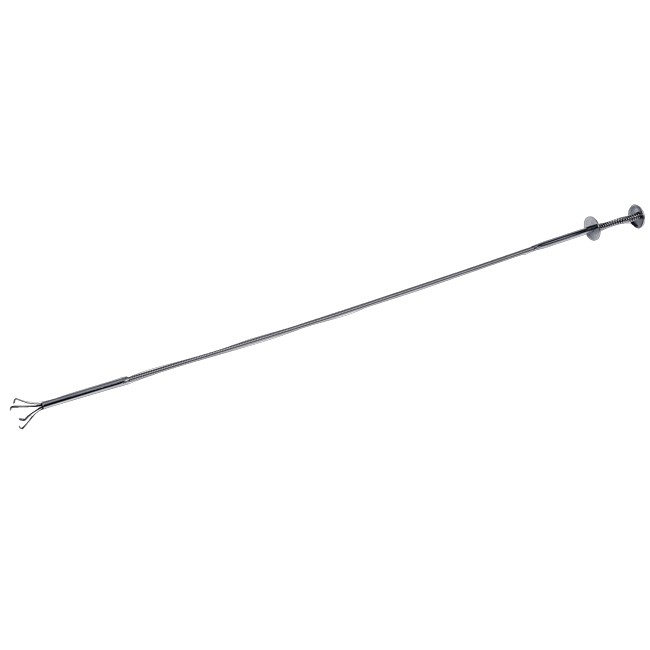

Snap On Williams Flexible Spring Claw

YA9127-BE

Specifications

18 – 60 V input
