XGL5050-103

General specification Core Material: Composite Weight: 0.77– 0.87 g Packaging: 250/7 reel, 750/13 reel Plastic tape: 16 mm wide, 0.30 mm thick, 12 mm pocket spacing, 5.21 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

450,00 ₽

Артикул: XGL5050-103MEC Категорий: Products, XGL, XGL5050, XGL5050-103, Власть, Формованный индуктор, Экранированные индукторы

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL5050-103MEC	10	30.5	33.6	17	2.5	3.7	4.9	4.6	6.2

Каталог

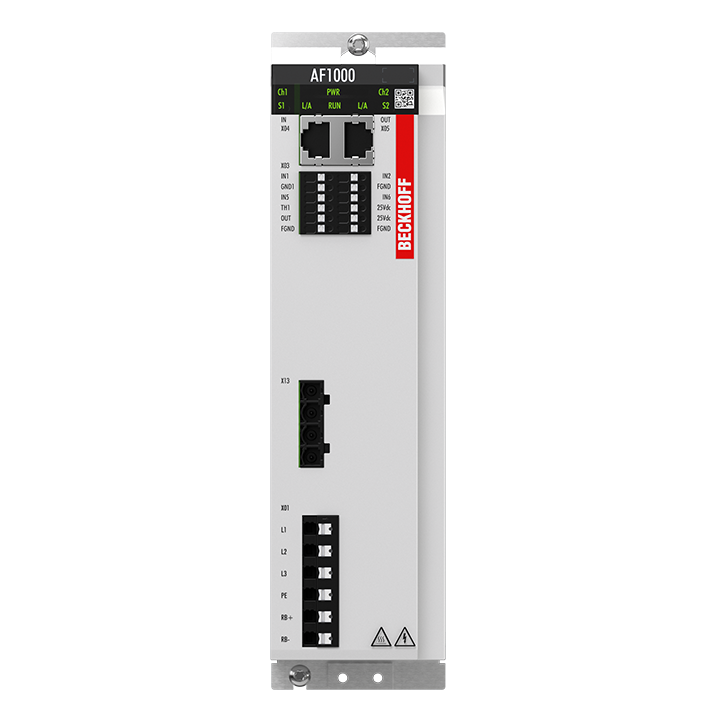

AF1115-3000-0000 | Economy variable frequency drive, three-phase, single-axis module, 1.5В kWNew
