XGL4015-301

General specification Core Material: Composite Weight: 0.13 – 0.14 g Packaging: 1000/7 reel, 4000/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.78 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL4015-301MEC Категорий: High Voltage Inductors, Power, Products, XGL, XGL4015, XGL4015-301

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 80 V

Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL4015-301MEC	300	4.7	5.7	130	5.5	9.1	12.9	11.0	15.3

Каталог

Wilton B.A.S.H Splitting Maul – 6 lb Head

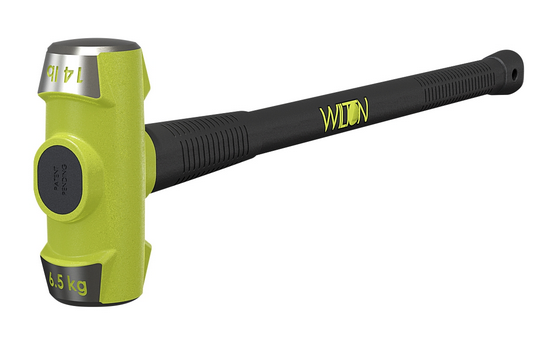

Wilton BASH 14 Pound Sledge Hammer
