XGL4012-102

General specification Core Material: Composite Weight: 0.10 – 0.12 g Packaging: 1500/7 reel, 5000/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.4 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL4012-102MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XGL, XGL4012, XGL4012-102

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL4012-102ME_	1.0	25.0	29.9	67	2.9	4.6	6.6	5.2	7.0

Каталог

EP2316-0008 | EtherCAT Box, 8-channel digital input + 8-channel digital output, 24В VВ DC, 10В Вµs, 0.5В A, D-sub

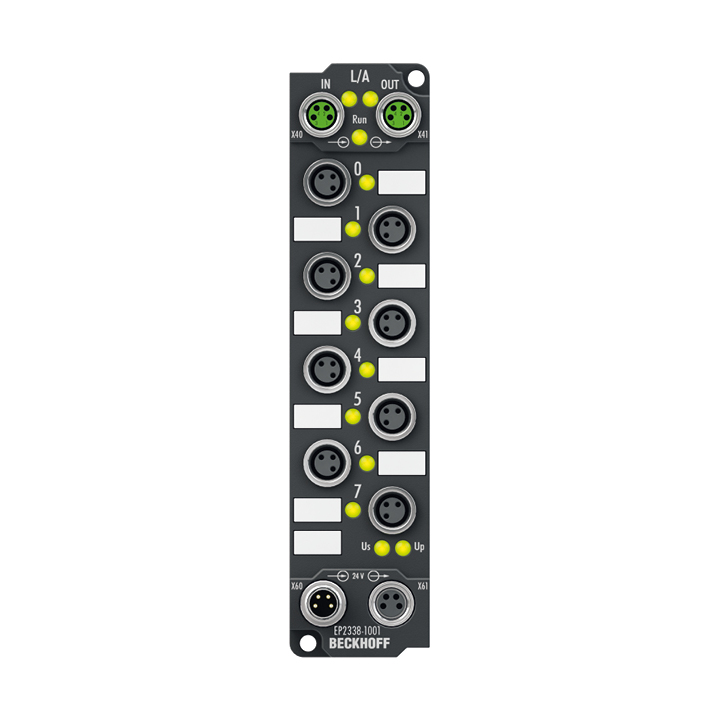

EP2338-1001 | EtherCAT Box, 8-channel digital combi, 24В VВ DC, 3В ms, 0.5В A, M8
