XGL3530-701

General specification Core Material: Composite Weight: 0.17 – 0.19 g Packaging: 500/7 reel, 2500/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL3530-701MEC Категорий: Power, Products, Shielded Inductors, XGL, XGL3530, XGL3530-701, Формованный индуктор

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 — 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL3530-701MEC	0.70	6.9	8.0	100	3.5	5.5	7.3	9.5	12.9

Каталог

XAL4040-822

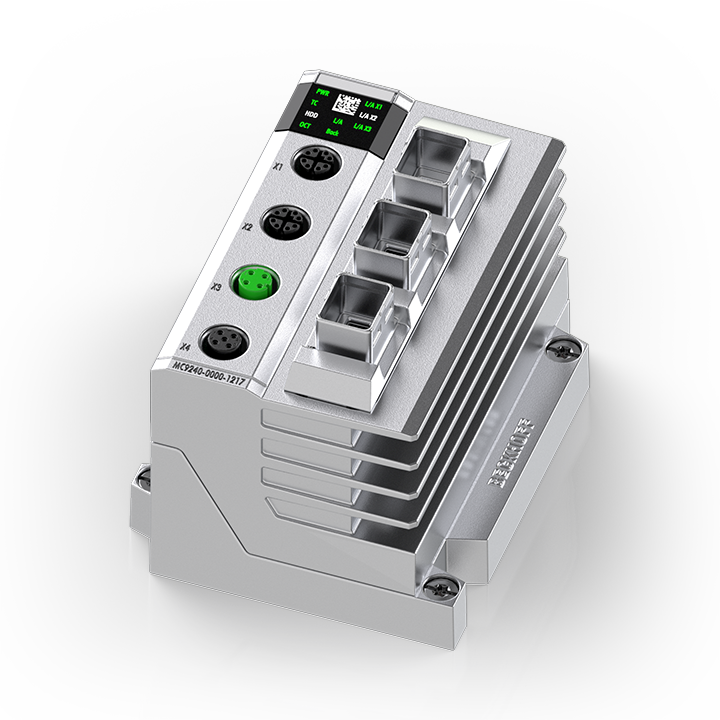

MC9240-0000-1217 | IPC module, Industrial PC, ArmВ® CortexВ®-A53, M12, push-pull
