XGL3520-561

General specification Core Material: Composite Weight: 0.11 – 0.12 g Packaging: 1000/7 reel, 3000/13 reel Plastic tape: 12 mm wide, 0.21 mm thick, 8 mm pocket spacing, 2.2 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL3520-561MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XGL, XGL3520, XGL3520-561

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 — 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL3520-561MEC	0.56	7.9	9.1	105	3.2	5.0	6.9	9.9	13.6

Каталог

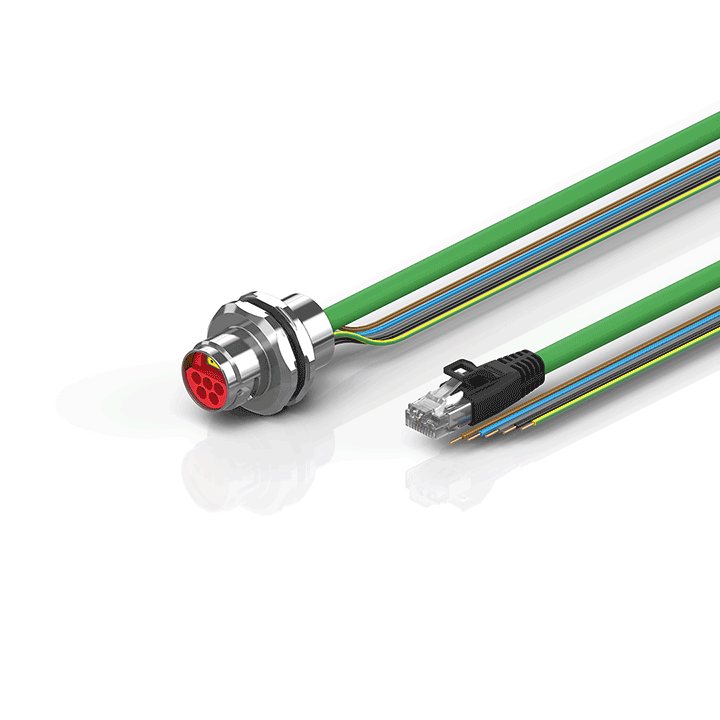

ZK7608-AX00-Axxx | B17, ENP cable, PUR, 5 G 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (400В VВ AC)
