XGL3515-681

General specification Core Material: Composite Weight: 0.082 – 0.090 g Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.8 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL3515-681MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XGL, XGL3515, XGL3515-681

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 — 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL3515-681MEC	0.68	11.5	13.3	90	2.8	4.5	6.4	6.9	9.5

Каталог

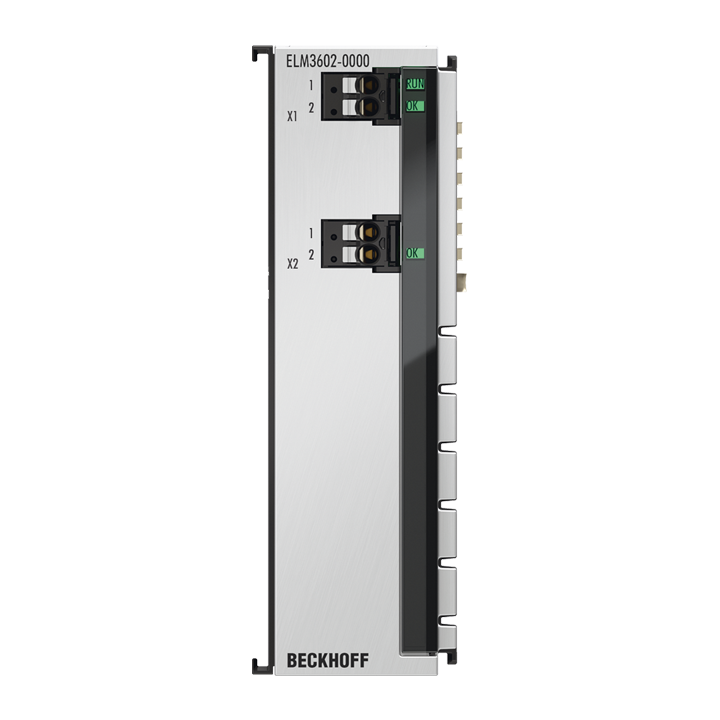

ELM3602-0000 | EtherCAT Terminal, 2-channel analog input, IEPE/accelerometer, 24В bit, 50В ksps

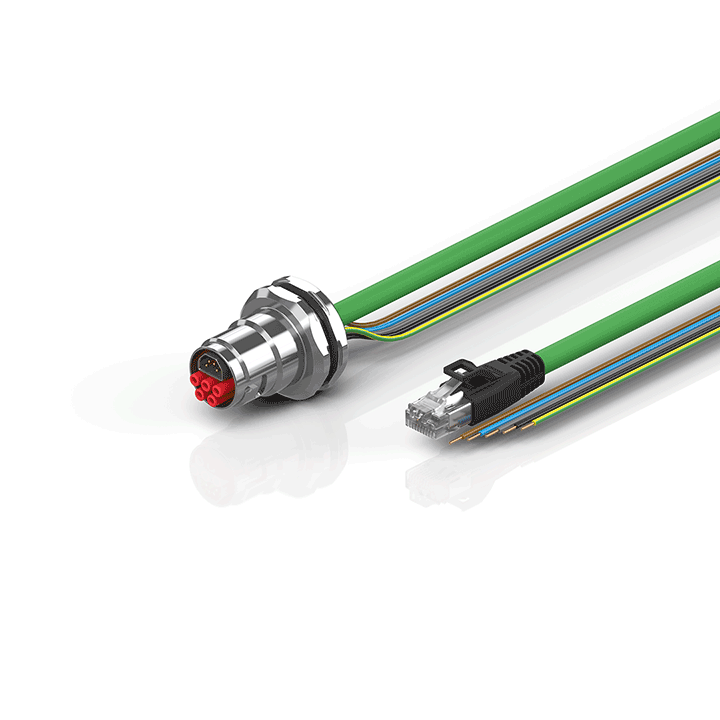

ZK7608-CA00-Axxx | B17, ENP cable, PUR, 5 G 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (400В VВ AC)
