XGL3515-102

General specification Core Material: Composite Weight: 0.082 – 0.090 g Packaging: 1000/7 reel, 3500/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.8 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XGL3515-102MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XGL, XGL3515, XGL3515-102

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 — 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XGL3515-102MEC	1.0	18.5	21.3	72	2.2	3.5	4.9	5.9	7.9

Каталог

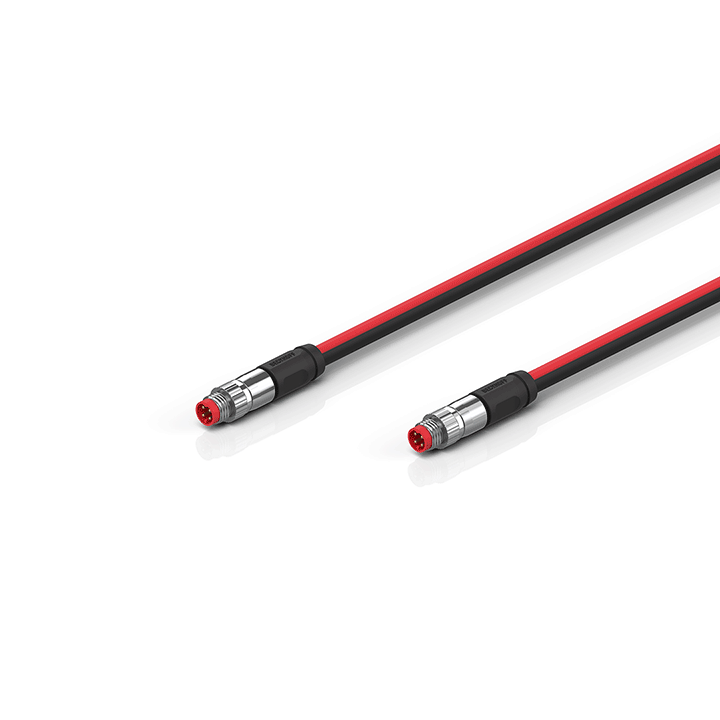

ZK7000-0101-6xxx | EtherCAT P cable, AWG22, PUR, capable of torsion

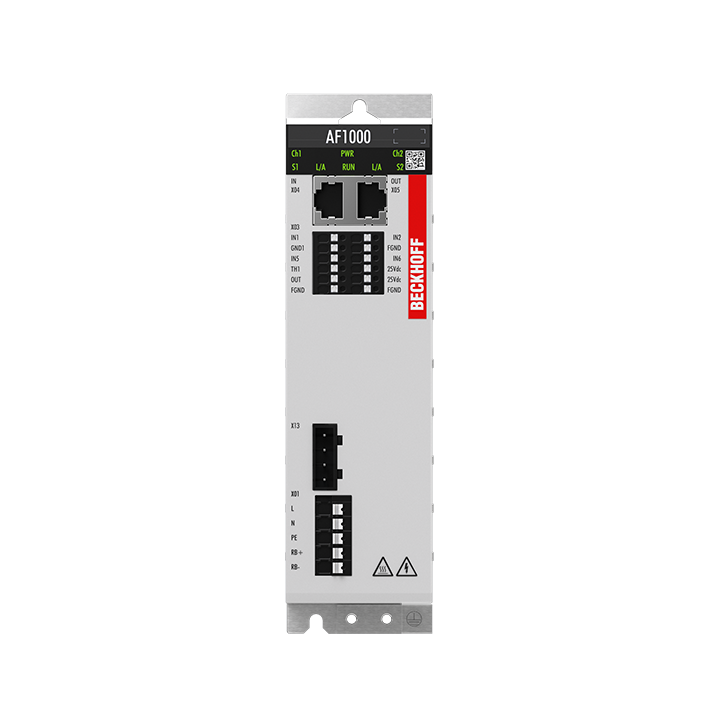

AF1115-1000-0000 | Economy variable frequency drive, single-phase, single-axis module, 1.5В kWNew
