XFL3012-333

General specification Core Material: Composite Weight: 53 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.55 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XFL3012-333MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XFL, XFL3012, XFL3012-333

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 40 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XFL3012-333ME_	33	0.86	0.90	16.6	0.23	0.32	0.38	0.42	0.57

Каталог

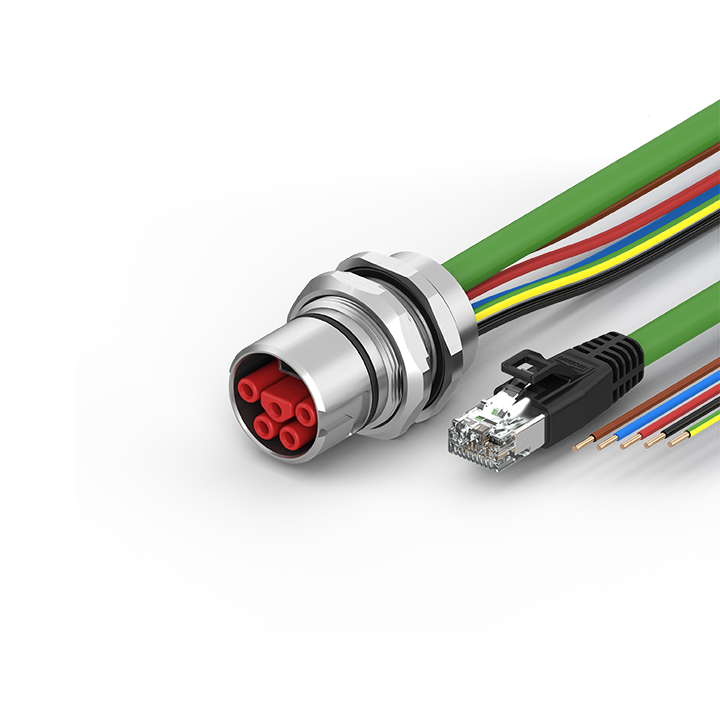

ZK7A30-AU00-Axxx | B23, ENP cable, PUR, 3 G 4.0 mmВІ + 2 x 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage), XTS
