XFL3012-153

General specification Core Material: Composite Weight: 53 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.55 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XFL3012-153MEC Категорий: High Voltage Inductors, Power, Products, XFL, XFL3012, XFL3012-153

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 40 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XFL3012-153ME_	15	0.39	0.48	25.8	0.43	0.58	0.65	0.74	1.0

Каталог

Wera Tools 8100 SA 6 Zyklop Speed Ratchet Set, 1/4 Inch Drive, Metric, 28 Pieces

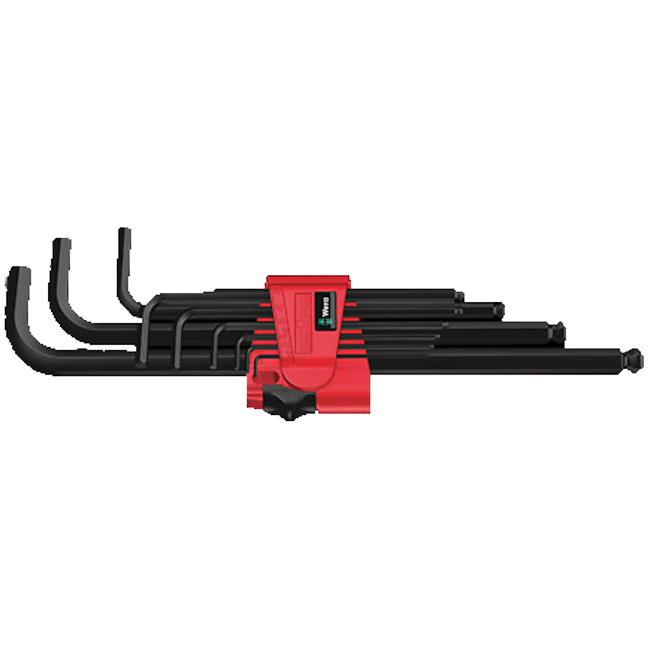

Wera Tools 950/9 Hex-Plus 6 L-key set, metric, BlackLaser
