XFL2006-223

General specification Core Material: Composite Weight: 10 – 13 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 8 mm wide, 0.28 mm thick, 4 mm pocket spacing, 0.76 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: XFL2006-223MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XFL, XFL2006, XFL2006-223

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 40 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XFL2006-223ME_	22	2.8	3.1	30.5	0.15	0.21	0.24	0.24	0.31

Каталог

EL1899 | EtherCAT Terminal, 16-channel digital input, 24В VВ DC, 10В Вµs, ground switching

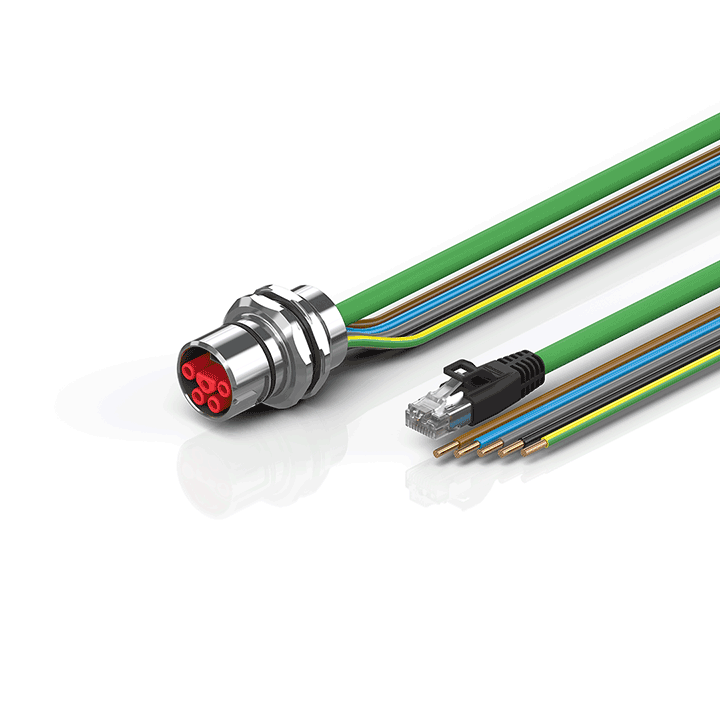

ZK7714-AW00-Axxx | B23, ENP cable, PUR, 5 G 4.0 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (400 V AC)
