XEL6060-472

General specification Core Material: Composite Weight: 1.23 – 1.31 g Packaging: 250/7reel, 750/13 reel Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 6.23 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: XEL6060-472MEC Категорий: Molded Inductor, Power, Products, Shielded Inductors, XEL, XEL6060, XEL6060-472

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 80 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	Isat (A) 5	20C rise	40C rise
XEL6060-472ME_	4.7	13.7	15.0	23.0	11.4	9.0	12.1

Каталог

EL7031-0030 | EtherCAT Terminal, 1-channel motion interface, stepper motor, 24В VВ DC, 2.8В A

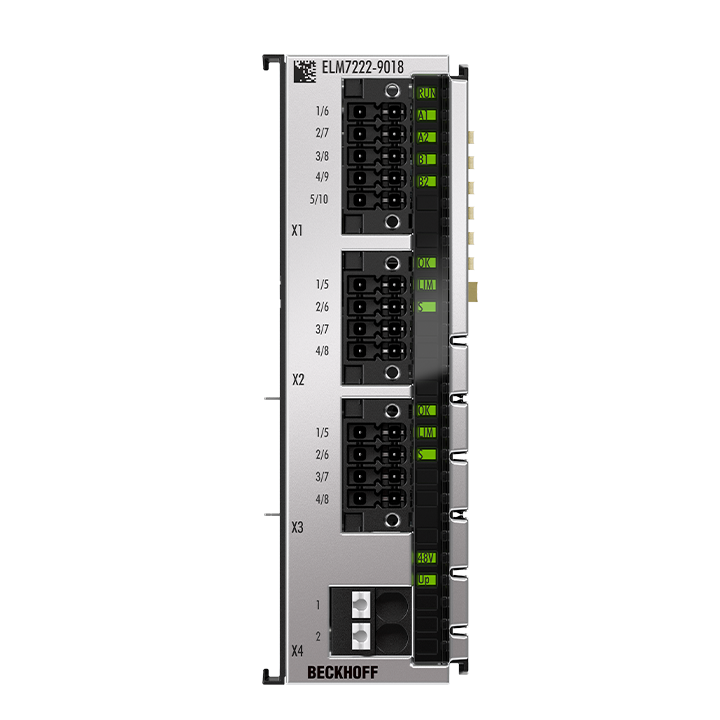

ELM7222-9018 | EtherCAT Terminal, 2-channel motion interface, servomotor, 48В VВ DC, 8В A, OCT, STO, Safe Motion, TwinSAFE Logic
