XAL8050-223

General specification Core Material: Composite Weight: 1.87 g Packaging: 250/7 reel, 800/13 reel Plastic tape: 24.4 mm wide, 0.35 mm thick, 16 mm pocket spacing, 5.21 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: Molded Inductor, Power, Products, Shielded Inductors, XAL, XAL8050, XAL8050-223

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 60 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
XAL8050-223ME_	22	50.4	71.0	7.5	2.5	4.2	6.2	3.7	5.2

Каталог

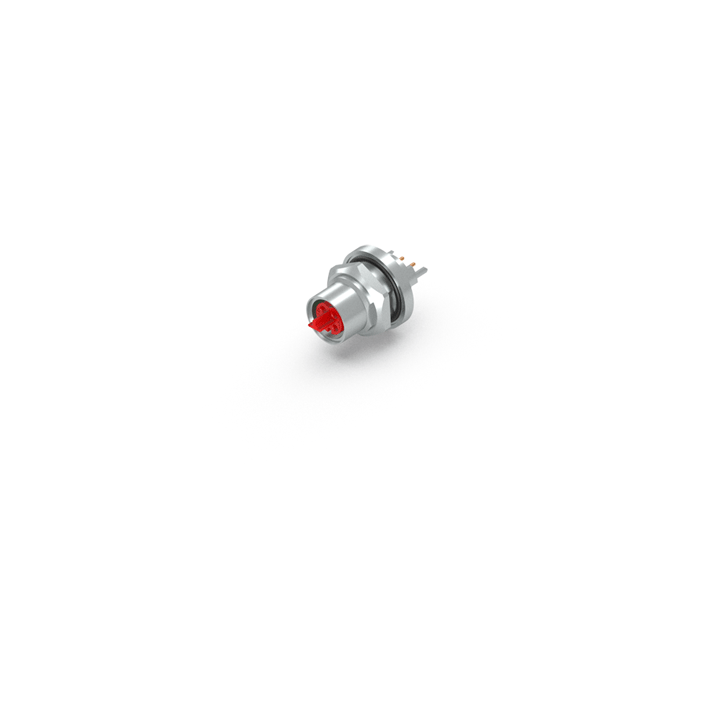

ZS7002-0002 | Flange rear assembly, EtherCAT P, print contact, 6.0 mm, with counter nut, 1-piece: contact carrier glued into housing, shielded
