XAL7070-682

General specification Core Material: Composite Weight: 1.9 – 2.3 g Packaging: 150/7 reel, 750/13 reel Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 7.44 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

675,00 ₽

Артикул: XAL7070-682MEC Категорий: High Voltage Inductors, Power, Products, XAL, XAL7070, XAL7070-682

Описание

Specifications

Electrical specifications at 25C. Operating voltage 0 – 60 V

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	Isat (A) 5	20C rise	40C rise
XAL7070-682ME_	6.8	17.8	19.6	20.0	12.8	6.8	9.2

Каталог

AF1115-1xxx | Economy variable frequency drive, single-phase, single-axis module, 1.5В kWNew

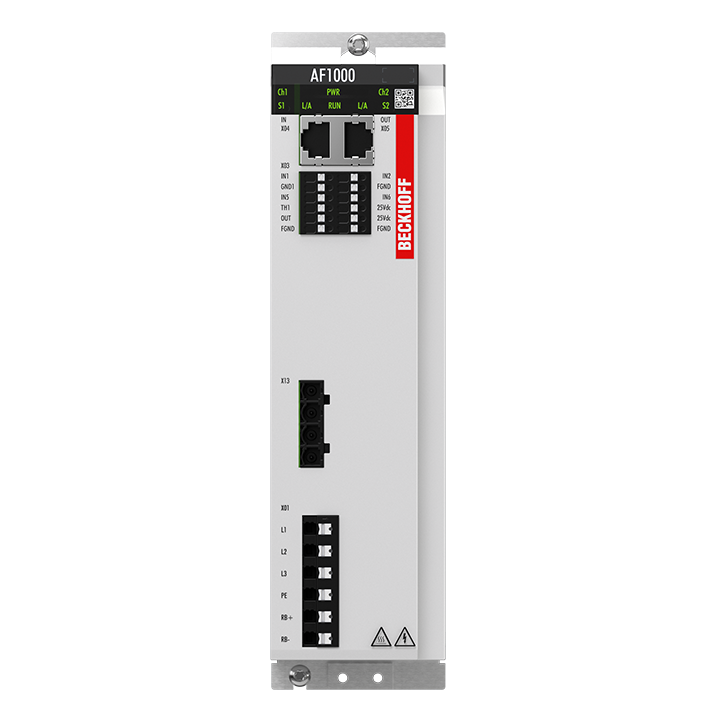

AF1130-3000-0000 | Economy variable frequency drive, three-phase, single-axis module, 3.0В kWNew
