WB13-1TL

General specification Core Material: Ferrite Weight: 0.38 – 0.40 g Packaging: 70 per tube Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

450,00 ₽

Категорий: Products, Transformers, WB_TH, WB13-1TL, Wideband RF Transformers

Описание

Specifications

Electrical specifications at 25C. Measurements are referenced to 50 Ohms.

Secondary tap

Part number (Hover for schematics)	L min per winding (H) 1		DCR max (mΩ) 2		Imp. ratio pri:sec 3	Current rating (mA)	Insertion loss (db)	DC imbalance 4	Bandwidth (MHz)	Isolation Voltage (Vrms)	Schematic
Part number (Hover for schematics)	Pri	Sec	Pri	Sec	Imp. ratio pri:sec 3	Current rating (mA)	Insertion loss (db)	DC imbalance 4	Bandwidth (MHz)	Isolation Voltage (Vrms)	Schematic
WB13-1TL	17	221	90.0	200	1 : 13	250	0.72	10.0	0.15 125	500	B

Каталог

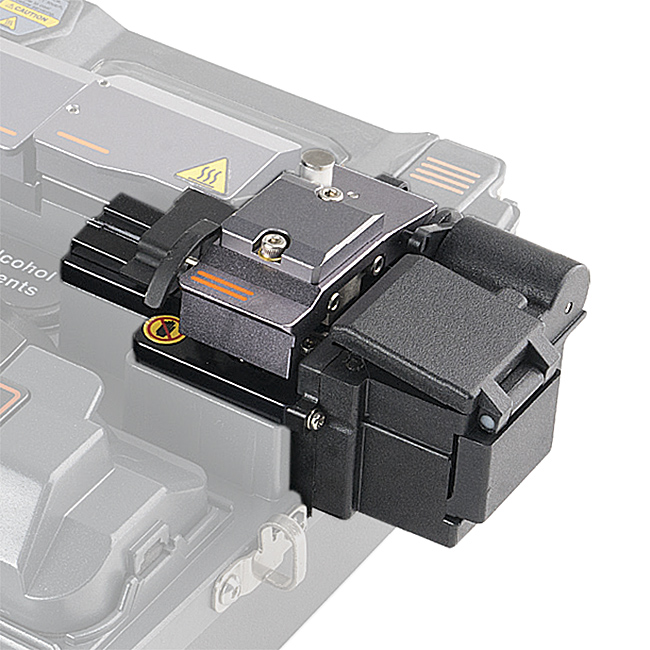

UCL Swift North America Replacement Cleaver for KF4A Fusion Splicer

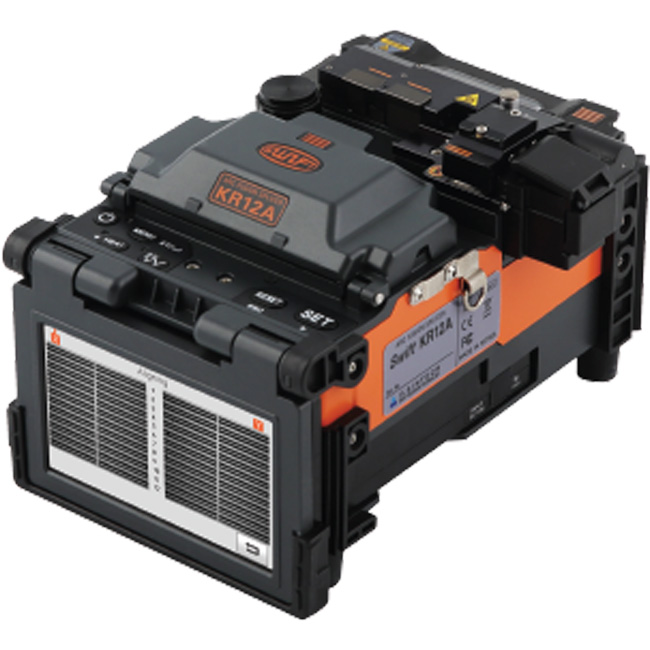

UCL Swift North America All-In-One Fusion Splicer (Ribbon)
