TTWB3010

General specification Core Material: Ferrite Weight: 0.37 – 0.43 g Packaging: 1000 per 13 reel, Plastic tape: 16 mm wide, 0.34 mm thick, 12 mm pocket spacing, 4.83 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info

1125,00 ₽

Артикул: TTWB3010LD Категорий: Products, Transformers, TTWB, TTWB3010, Wideband RF Transformers

Описание

Specifications

Electrical specifications at 25C.

Type C

Part number 1 (Hover for schematics)	L min per winding (H) 2	DCR max (mΩ)		Imp. ratio pri:sec 3	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Color dot
Part number 1 (Hover for schematics)	Pri	Pri	Sec	Imp. ratio pri:sec 3	Current rating (mA)	Insertion loss (db)	Bandwidth (MHz)	Isolation Voltage (Vrms)	Color dot
TTWB3010L_	780	320	320	1 : 1	250	0.2	0.0035 125	400	Red Black Black

Каталог

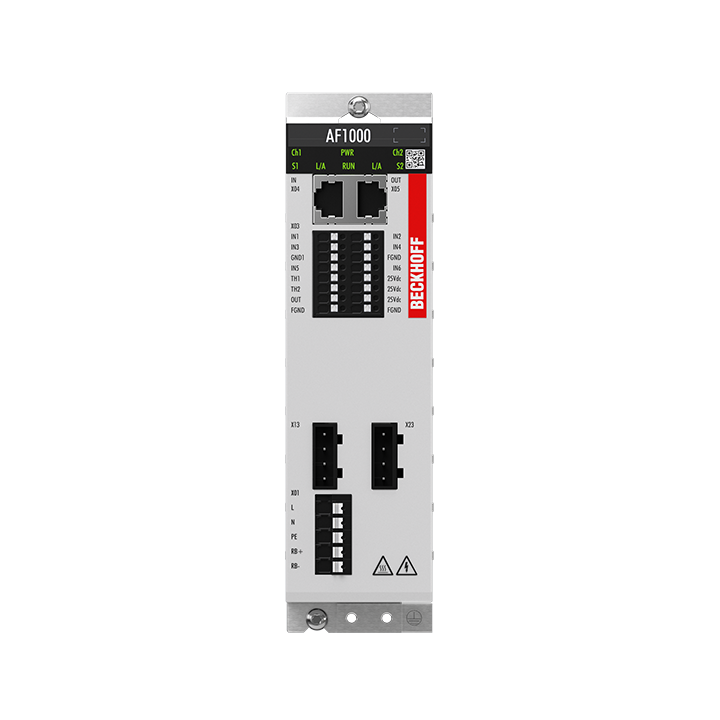

AF1207-1100-0000 | Economy variable frequency drive, single-phase, dual-axis module, 0.75В kWNew
