SLR1070-171

General specification Core Material: Ferrite Weight: 2.2 – 2.3 g Packaging: 150/7 reel, 800/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 12 mm pocket spacing, 7.05 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: SLR1070-171KEC Категорий: High current flat wire, Power, Products, Shielded Inductors, SLR SLC, SLR1070, SLR1070-171

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,10%)	DCR &plusmn, 10% (mΩ) 3	SRF typ (MHz)	Isat (A) 4			Irms (A) 5
Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,10%)	DCR &plusmn, 10% (mΩ) 3	SRF typ (MHz)	at 25C	at 100C	at 125C	20C rise	40C rise
SLR1070-171KE_	170	0.29	80	64.0	50.5	46.0	61	82

Каталог

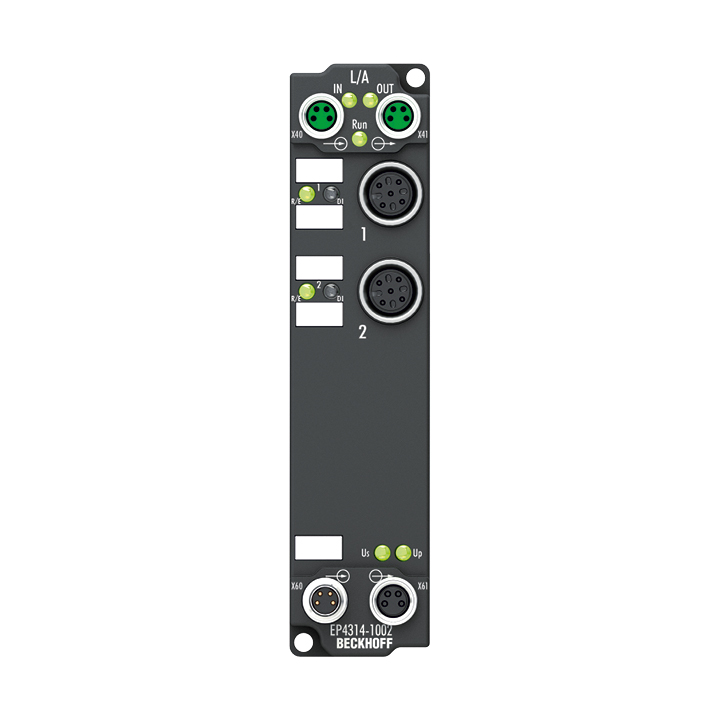

EP4314-1002 | EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, В±20В mA, 16В bit, single-ended, M12

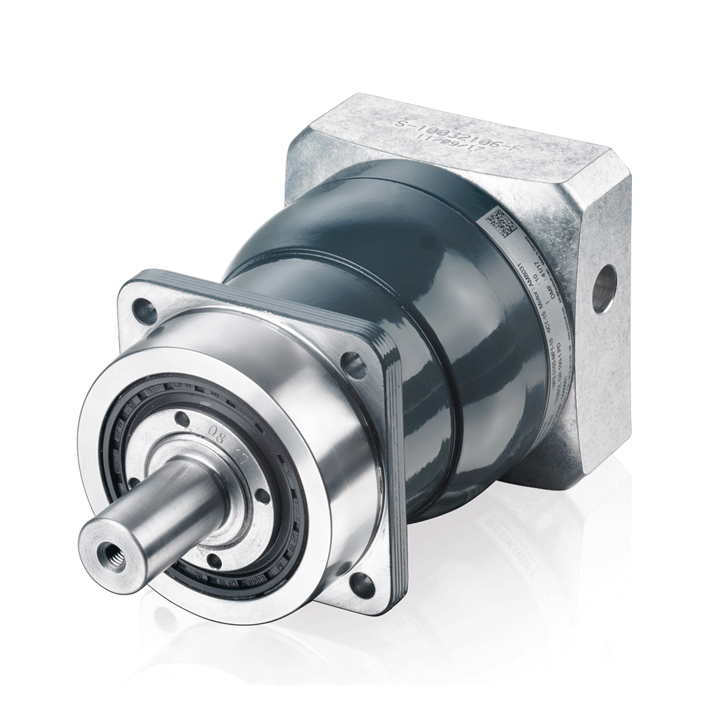

AG3300-+NPS015S-MF2-20 | Economy planetary gear units, sizeВ 015
