SLC7530D-500

General specification Core Material: Ferrite Weight: 0.44 – 0.47 g Packaging: 500/7 reel, 1700/13 reel, Plastic tape: 16 mm wide, 0.33 mm thick, 12 mm pocket spacing, 3.12 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Артикул: SLC7530D-500MLC Категорий: Power, Products, SLC7530, SLC7530D-500, SLR SLC, Плоский провод высокого тока, Экранированные индукторы

Описание

Specifications

Electrical specifications at 25C.

Dual Conductor

Part number 1	Leads connected in parallel					Leads connected in series
	L (H) 2 (&plusmn,20%)	DCR &plusmn, 5% (mΩ) 3	SRF typ (GHz) 4	Isat (A) 5	Irms (A) 6	L (H) 2 (&plusmn,20%)	DCR max (mΩ) 3	SRF typ (GHz) 4	Isat (A) 5	Irms (A) 6
	L (H) 2 (&plusmn,20%)	DCR &plusmn, 5% (mΩ) 3	SRF typ (GHz) 4	Isat (A) 5	Irms (A) 6	L (H) 2 (&plusmn,20%)	DCR max (mΩ) 3	SRF typ (GHz) 4	Isat (A) 5	Irms (A) 6
SLC7530D-500ML_	0.050	0.209	3.8	50.0	38.0	0.19	1.000	1.5	21.0	28.0

Каталог

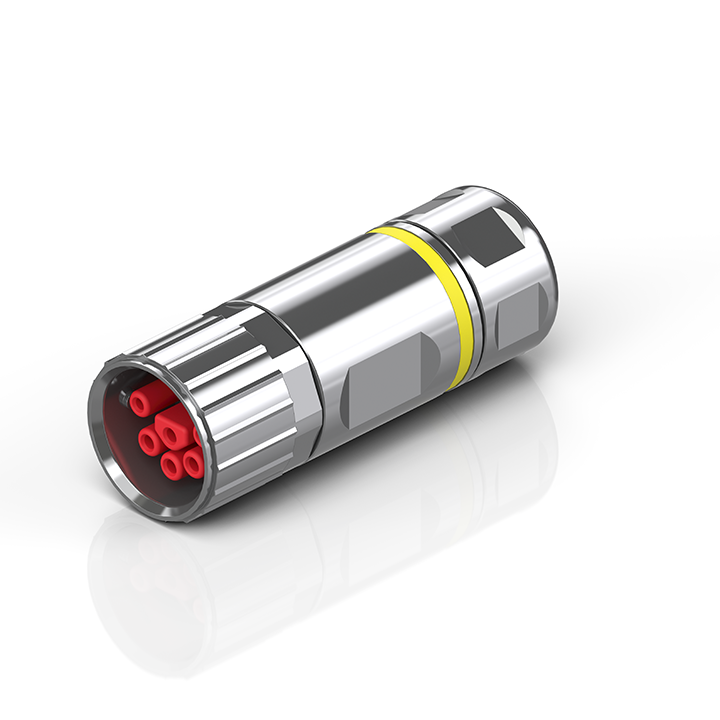

ZS7300-A004 | Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded
