SER8052-402

General specification Core Material: Ferrite Weight: 0.86 – 1.0 g Packaging: 250/7 reel, 1000/13 reel, Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 5.2 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: SER8052-402MEC Категорий: High current flat wire, Power, Products, SER, SER8052-402, SER80xx, Shielded Inductors

Описание

Specifications

Electrical specifications at 25C.

High Isat version for high peak current applications

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
SER8052-402ME_	4.0	13.0	14.3	66.0	7.0	7.8	8.2	4.5	6.3

Каталог

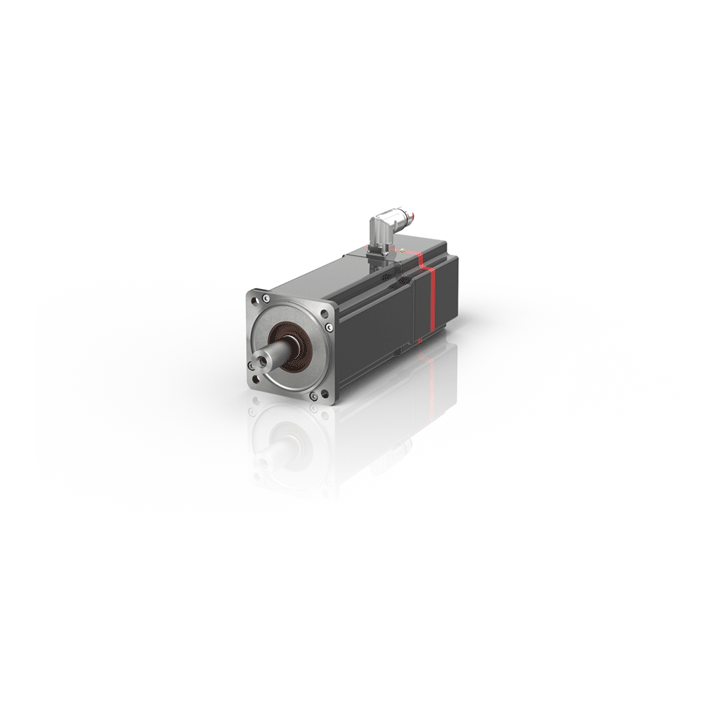

AMP8053-Gx1z | Distributed servo drive 10.2 Nm (M0), F5 (104В mm)

Серия 1111SQ

SER8052-402

Specifications

High Isat version for high peak current applications
