SER1052-572

General specification Core Material: Ferrite Weight: 1.6 g Packaging: 200/7 reel, 700/13 reel Plastic tape: 24 mm wide, 0.4 mm thick, 16 mm pocket spacing, 5.45 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: SER1052-572MLC Категорий: High current flat wire, Power, Products, SER, SER1052, SER1052-572, Shielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
SER1052-572ML_	5.7	9.0	35.0	5.4	5.8	6.0	8.5	11.5

Каталог

AMP8541-Hx3z | Distributed servo drive with increased rotor moment of inertia 2.35 Nm (M0), F4 (87В mm)

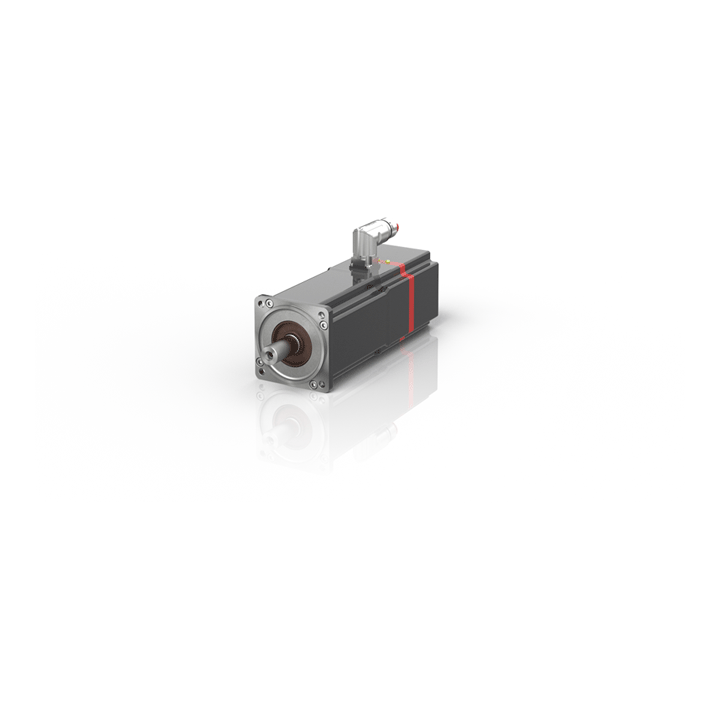

AMP8542-Jx3z | Distributed servo drive with increased rotor moment of inertia 3.84 Nm Nm (M0), F4 (87В mm)
