RFS1113-333

General specification Core Material: Ferrite Weight: 4.1 – 4.7 g Packaging: 169 parts per tray Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at PCB Washing: Tested with pure water or alcohol only. More info.

225,00 ₽

Артикул: RFS1113-333ME Категорий: High current radial lead, Power, Products, Shielded Inductors, РФС, РФС1113, РФС1113-333

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
RFS1113-333ME	33	0.045	0.052	8.8	2.8	3.5	4.0	3.2	4.4

Каталог

AG2400-+TP025S-MF2-64 | High-end planetary gear units with output flange, sizeВ 025

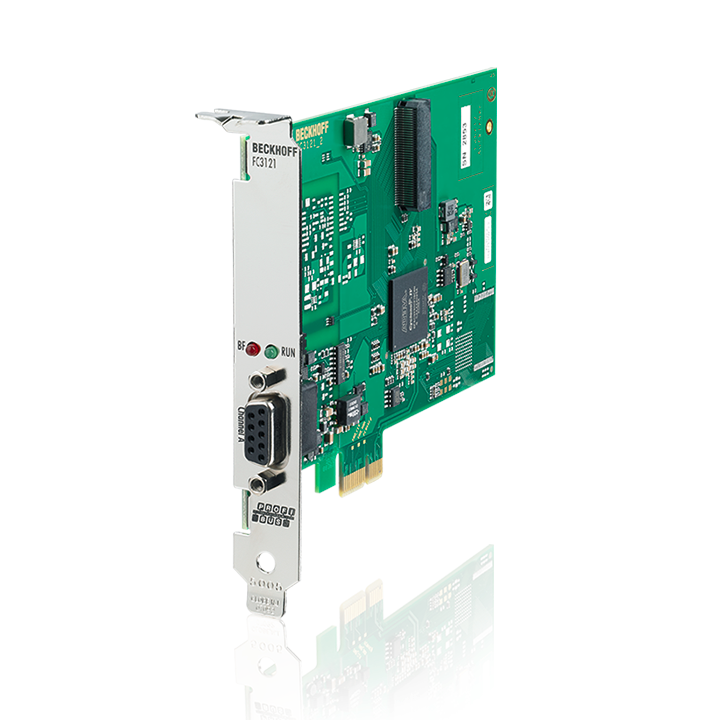

FC3121 | PROFIBUS master/slave card, 1 channel, PCIe x1
