RFS1113-223

General specification Core Material: Ferrite Weight: 4.1 – 4.7 g Packaging: 169 parts per tray Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at PCB Washing: Tested with pure water or alcohol only. More info.

225,00 ₽

Артикул: RFS1113-223ME Категорий: Power, Products, RFS1113-223, Shielded Inductors, РФС, РФС1113, Сильноточный радиальный вывод

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
RFS1113-223ME	22	0.023	0.026	11.8	3.5	4.2	4.8	4.4	6.1

Каталог

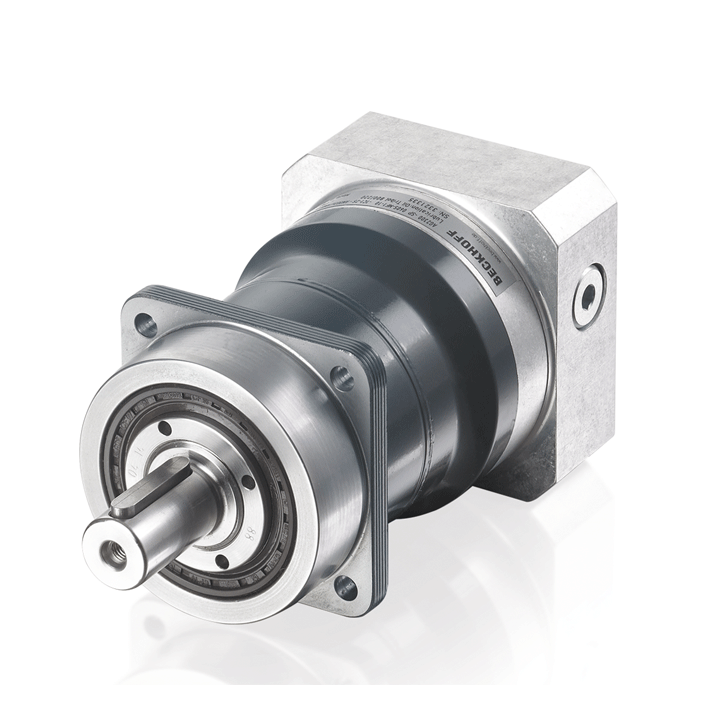

AG2300-+SP240S-MF2-100 | High-end gear series for rotary servomotors
