RFS1113-153

General specification Core Material: Ferrite Weight: 4.1 – 4.7 g Packaging: 169 parts per tray Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at PCB Washing: Tested with pure water or alcohol only. More info.

225,00 ₽

Артикул: RFS1113-153ME Категорий: High current radial lead, Power, Products, RFS1113-153, Shielded Inductors, РФС, РФС1113

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
RFS1113-153ME	15	0.020	0.023	19.8	4.0	5.0	5.8	4.8	6.6

Каталог

LPO2506O-105

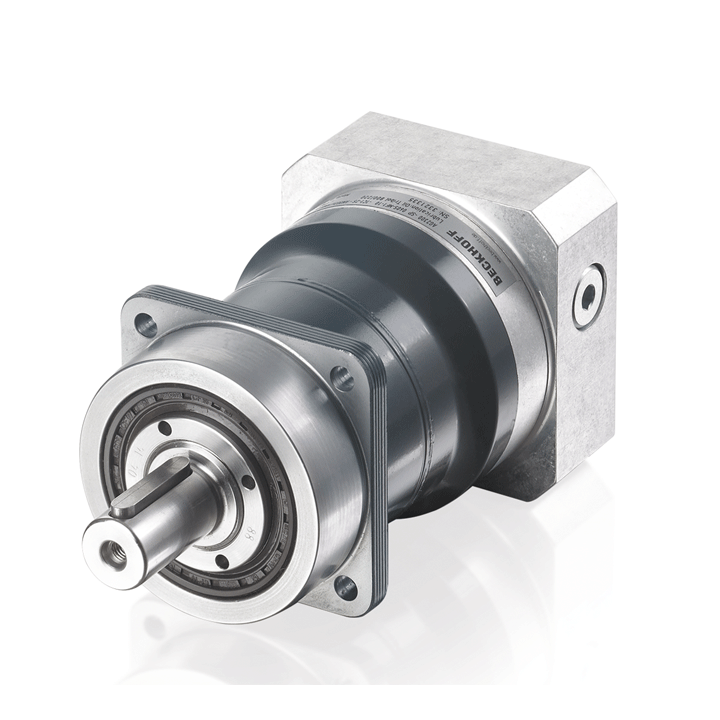

AG2300-+SP210S-MC2-32 | High-end gear series for rotary servomotors
