RFC1010B-683

General specification Core Material: Ferrite Weight: 3.2 – 3.7 g Packaging: 150 parts per tray Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Three reflows at &gt,217C for 90 seconds (+260C &plusmn,5C for 20 40 seconds), allowing parts to cool to room temperature between Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: RFC1010B-683KE Категорий: Power, Products, Radial lead, RFC RFB, RFC1010B, RFC1010B-683, Unshielded Inductors

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
RFC1010B-683KE	68	0.10	0.12	5.6	3.2	3.7	3.9	1.8	2.4

Каталог

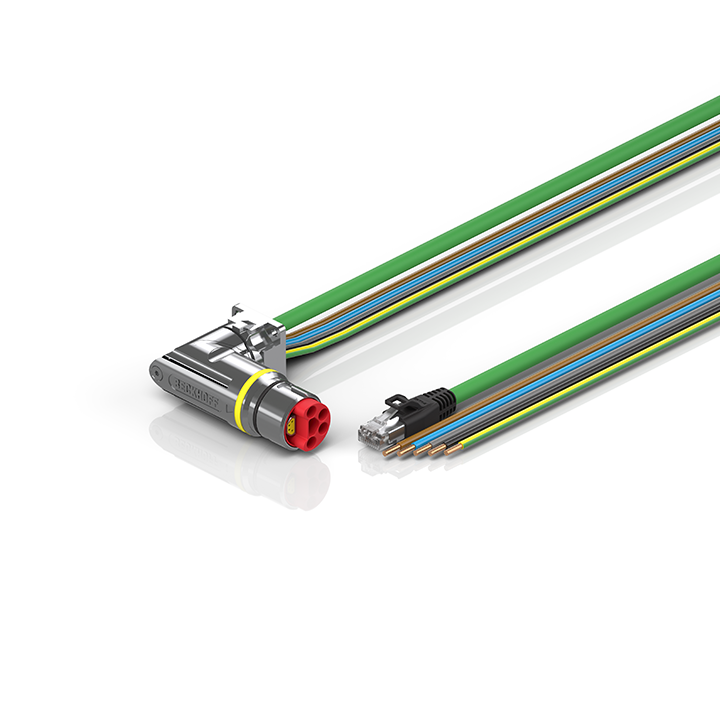

ZK7314-CJ00-Axxx | B23, ENP cable, PUR, 5 G 4.0 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (2В xВ 24В VВ DCВ +В PE)
