PL140-100L

General specification Core Material: Ferrite Weight: 10.9 – 12 g Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: PL140-100L, Planar Transformers, Products, Transformers, ПЛ140

Описание

Specifications

Electrical specifications at 25C.

Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	DCR max (mΩ) 3		Leakage Inductance max (H) 4	Turns Ratio	Frequency (kHz)	Isolation Voltage (Vrms) 5
Part number 1 (Hover for schematics)	Power (W)	Input Voltage (V)	Inductance min (H) 2	Pri	Sec	Leakage Inductance max (H) 4	Pri : Sec	Frequency (kHz)	Isolation Voltage (Vrms) 5
PL140-100L_	140	36 75	120	24.0	4.0	0.35	1 : 0.5	200	1500

Каталог

MA5509-CLD

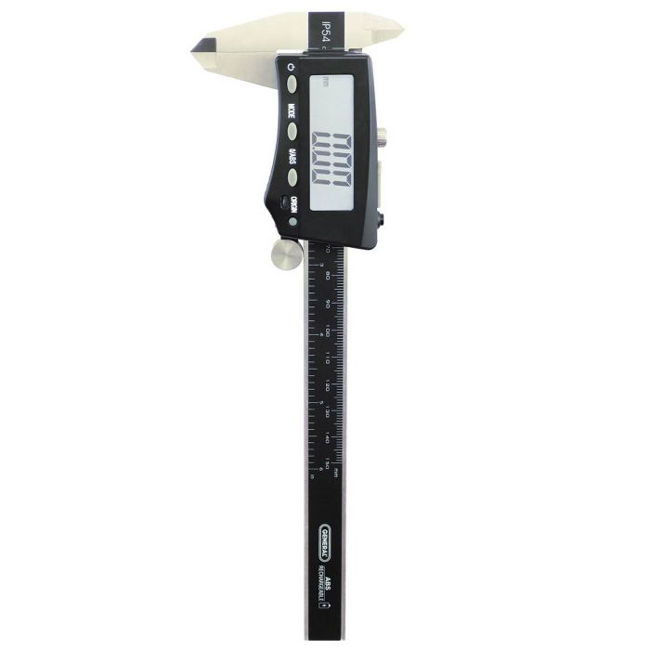

General Tools Stainless Steel Digital Caliper with Smart Connect
