PFL3215-681

General specification Core Material: Composite Weight: 31 – 39 mg Packaging: 2000/7 reel, 7500/13 reel. Plastic tape: 12 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: PFL3215-681MEC Категорий: Molded Inductor, PFL3215, Power, Products, Shielded Inductors, ПФЛ, ПФЛ3215-681

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (mA) 5			Irms (mA) 6
Part number 1	Inductance (nH) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
PFL3215-681ME_	680	28.0	33.0	450	2100	2500	2700	1500	2100

Каталог

ZK7624-2425-0xxx | B17, ECP cable, PUR, 4 x 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2

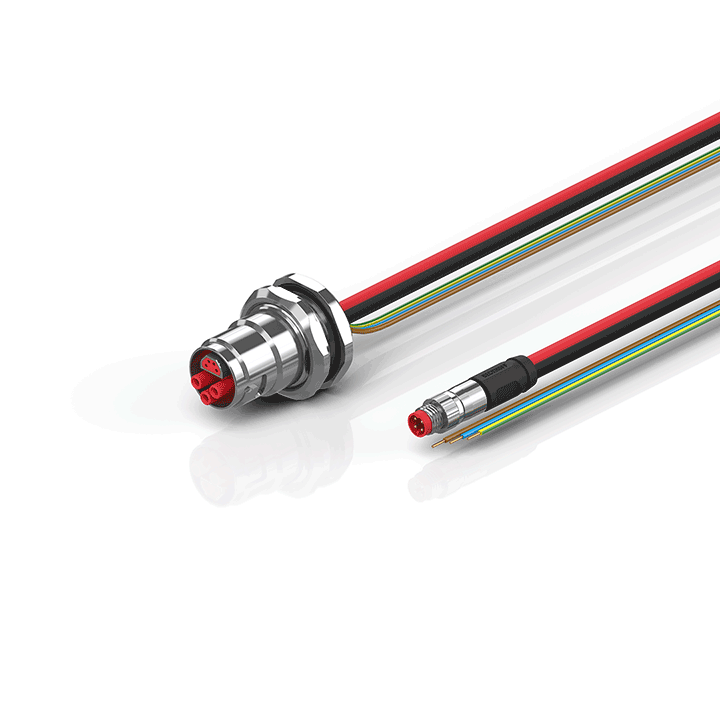

ZK7610-BM00-0xxx | B17, ECP cable, PUR, 3 G 2.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (230 V AC)
