PFD3215-332

General specification Core Material: Ferrite Weight: 18 – 28 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 12 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth Winding to Winding Isolation: 250 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

0,00 ₽

Артикул: PFD3215-332MEC Категорий: 1 1 Shielded Coupled, Coupled Inductors, PFD, PFD3215-332, Power, Products, ПФД3215

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
PFD3215-332ME_	3.3	0.36	250	140	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
PFD3215-332ME_	3.3	0.36	190	0.98	140	0.75	0.83	0.90	0.55	0.78

Каталог

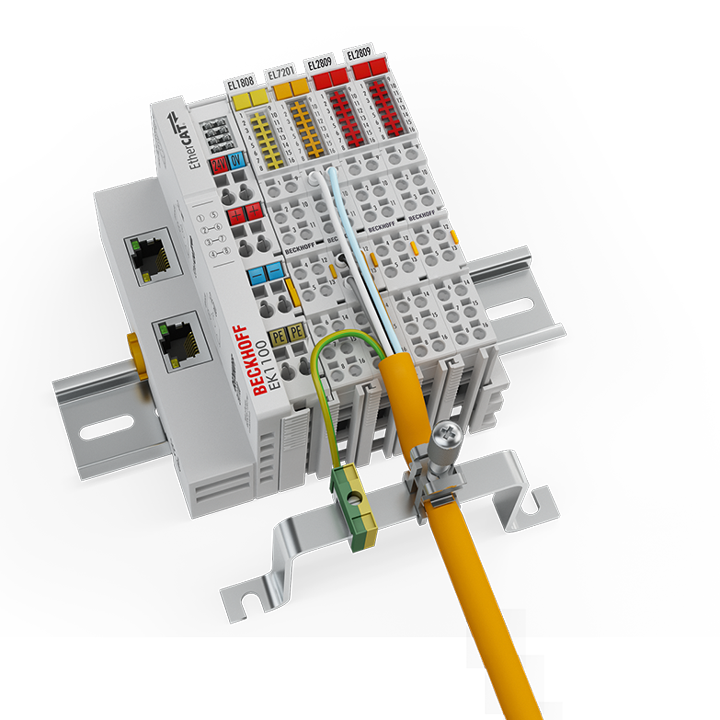

ZB8511 | Shield busbar clamp

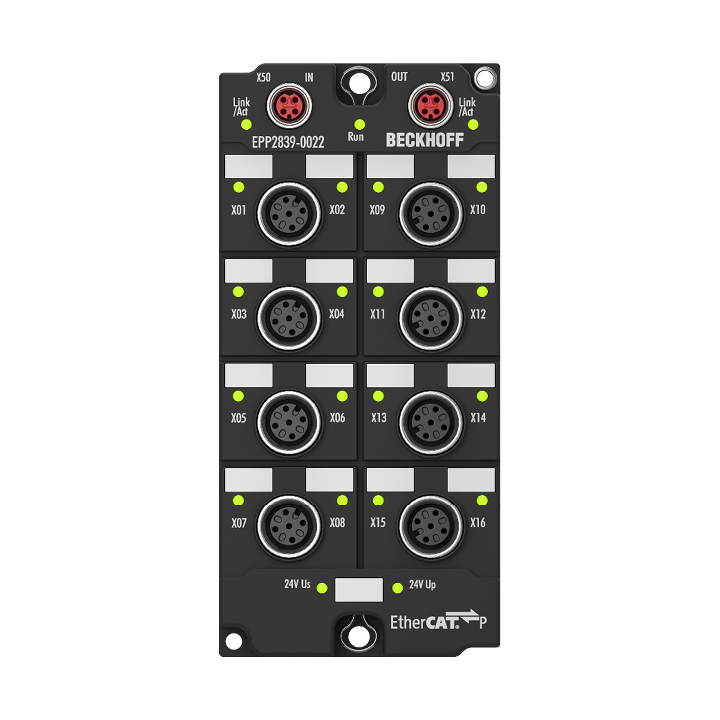

EPP2839-0022 | EtherCAT P Box, 16-channel digital output, 24В VВ DC, 0.5В A, M12, with diagnostics
