PFD2015-103

General specification Core Material: Ferrite Weight: 13 – 23 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.63 mm pocket depth Winding to Winding Isolation: 250 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

0,00 ₽

Артикул: PFD2015-103MEC Категорий: 1 1 Shielded Coupled, Coupled Inductors, PFD, Power, Products, ПФД2015, ПФД2015-103

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
PFD2015-103ME_	10	3.4	250	590	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
PFD2015-103ME_	10	3.4	110	0.97	590	0.30	0.34	0.37	0.13	0.19

Каталог

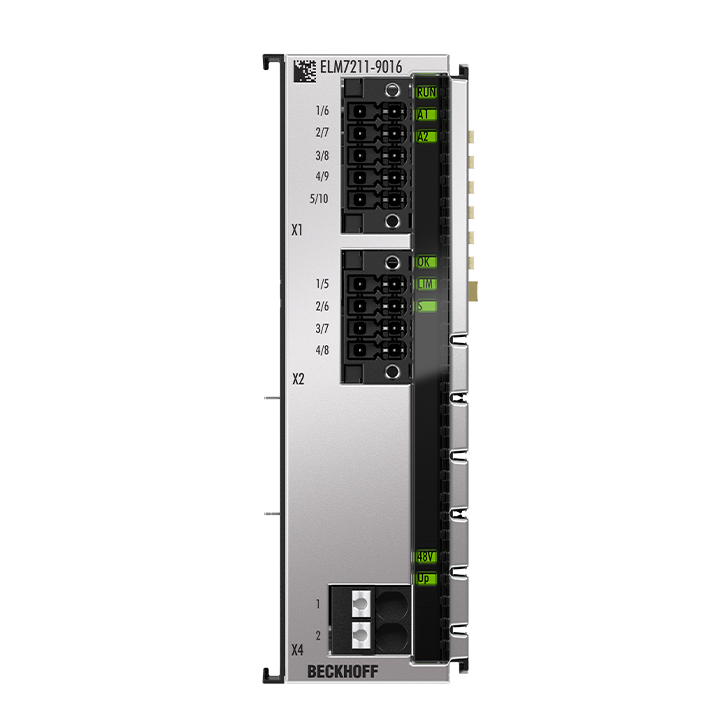

ELM7211-9016 | EtherCAT Terminal, 1-channel motion interface, servomotor, 48В VВ DC, 4.5В A, OCT, STO, TwinSAFE Logic

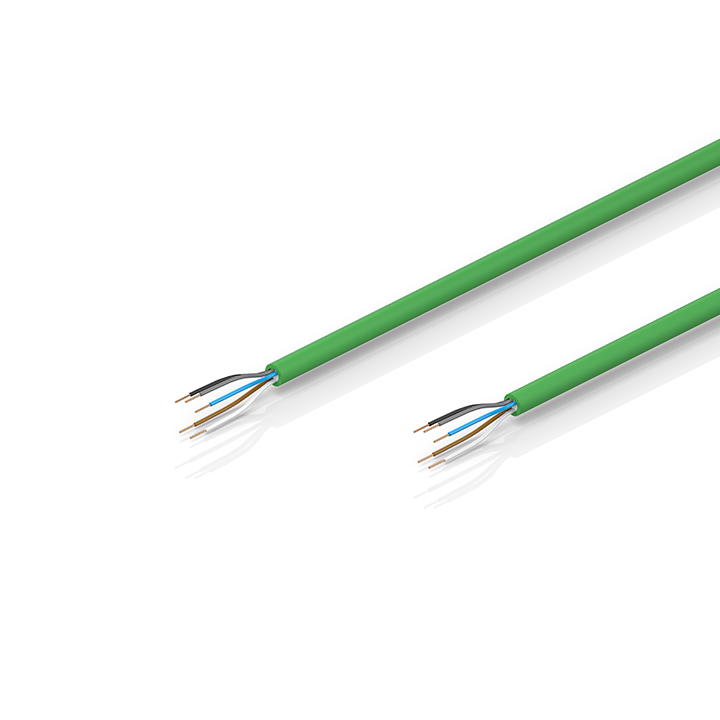

ZB9070 | Feedback cable, encoder, PUR, 5 x 0.25 mmВІ, drag-chain suitable
