PFD2015-102

General specification Core Material: Ferrite Weight: 13 – 23 mg Packaging: 2000/7 reel, 7500/13 reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.63 mm pocket depth Winding to Winding Isolation: 250 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

0,00 ₽

Артикул: PFD2015-102MEC Категорий: 1 1 Shielded Coupled, Coupled Inductors, PFD, Power, Products, ПФД2015, ПФД2015-102

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
PFD2015-102ME_	1.0	0.17	250	65	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
PFD2015-102ME_	1.0	0.17	380	0.97	65	0.85	1.1	1.3	0.80	1.1

Каталог

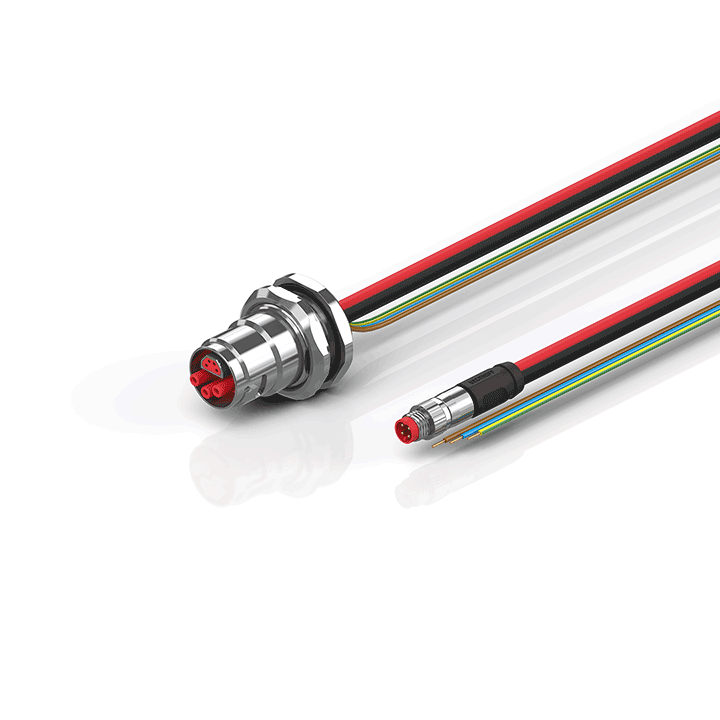

ZK7206-BM00-0xxx | B17, ECP cable, PUR, 3 G 1.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (24В VВ DC)

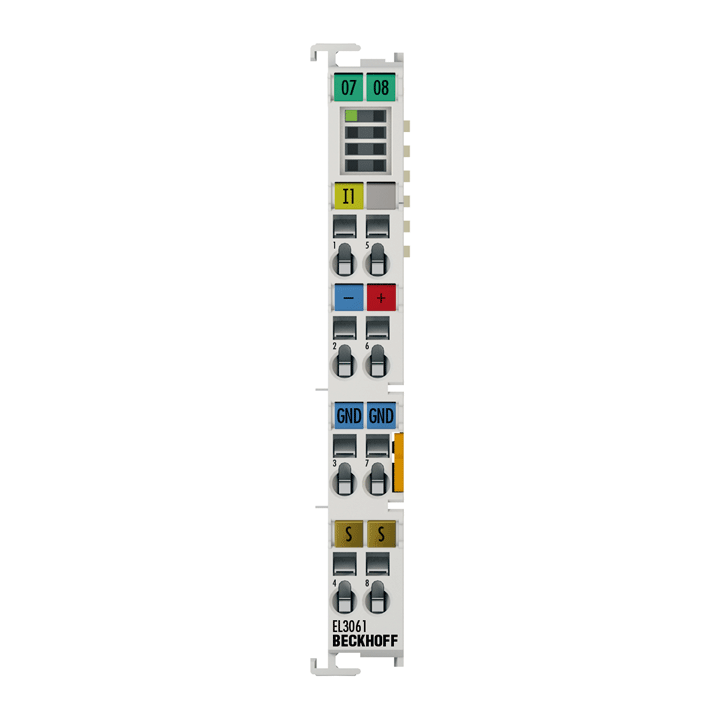

EL3061 | EtherCAT Terminal, 1-channel analog input, voltage, 0вЂ¦10В V, 12В bit, single-ended
