MSS7341T-224

General specification Core Material: Ferrite Weight: 0.61 – 0.67 g Packaging: 300/7 reel, 1200/13 reel, Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: MSS7341T-224MLD Категорий: Ferrite Drum, MSS7341T, MSS7341T-224, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS7341T-224ML_	220	0.66	0.71	5.0	0.39	0.47	0.51	0.57	0.78

Каталог

EL3142-0010 | EtherCAT Terminal, 2-channel analog input, current, В±10В mA, 16В bit, single-ended

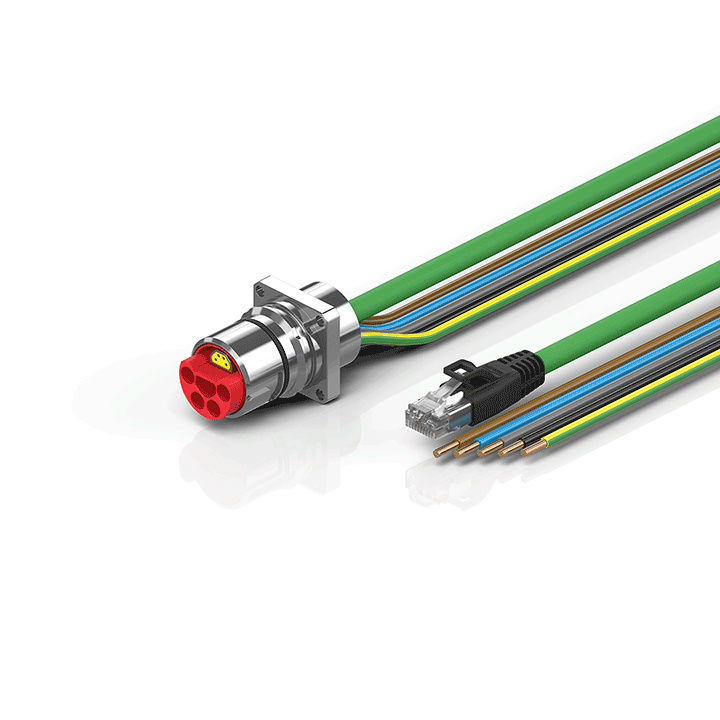

ZK7714-AT00-Axxx | B23, ENP cable, PUR, 5 G 4.0 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 2 (400В VВ AC)
