MSS5131H-823

General specification Core Material: Ferrite Weight: 0.20 – 0.24 g Packaging: 600/7 reel, 2500/13 reel, Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth. Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles. Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: MSS5131H-823MEC Категорий: Ferrite Drum, MSS5131H, MSS5131H-823, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω)		SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20C rise	40C rise
MSS5131H-823ME_	82	0.485	0.558	10.0	0.44	0.50	0.54	0.58	0.80

Каталог

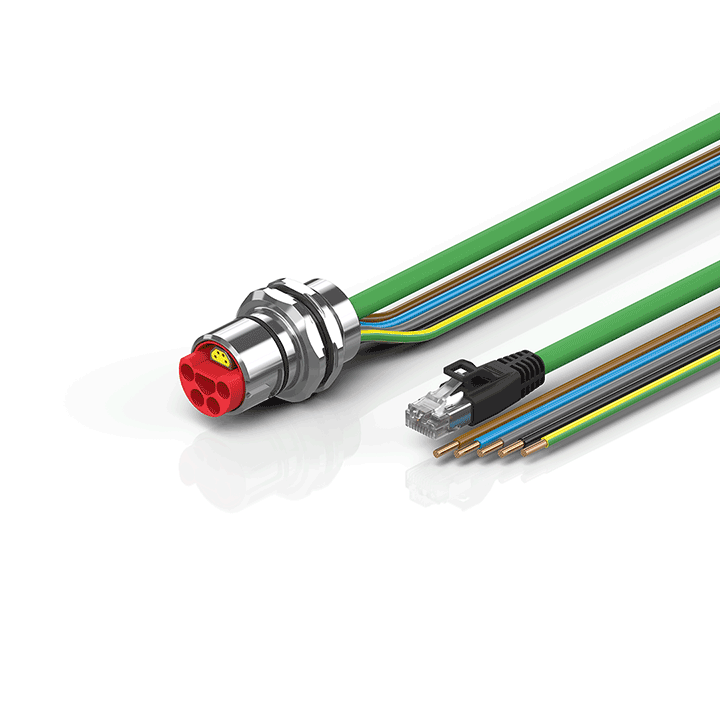

ZK7314-AX00-Axxx | B23, ENP cable, PUR, 5 G 4.0 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (2В xВ 24В VВ DCВ +В PE)

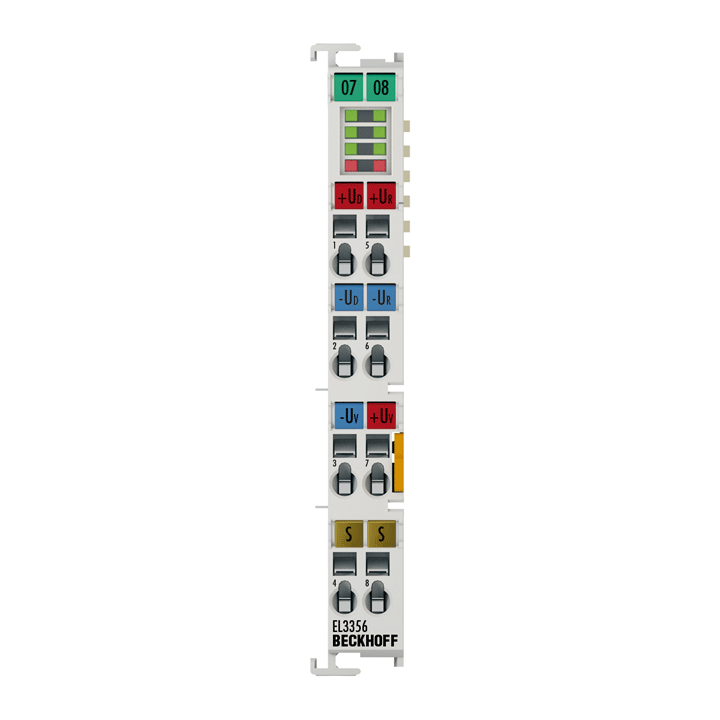

EL3356 | EtherCAT Terminal, 1-channel analog input, measuring bridge, fullВ bridge, 16В bit
