MSS5121-124

General specification Core Material: Ferrite Weight: 141 – 147 mg Packaging: 600/7 reel, 2500/13 reel, Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

225,00 ₽

Артикул: MSS5121-124MLC Категорий: Ferrite Drum, MSS5121-124, Power, Products, Shielded Inductors, МСС МОС, МСС5121

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS5121-124ML_	120	1.6	12.0	0.26	0.30	0.32	0.31	0.42

Каталог

AMP8542-Ex4z | Distributed servo drive with increased rotor moment of inertia 4.10 Nm (M0), F4 (87В mm)

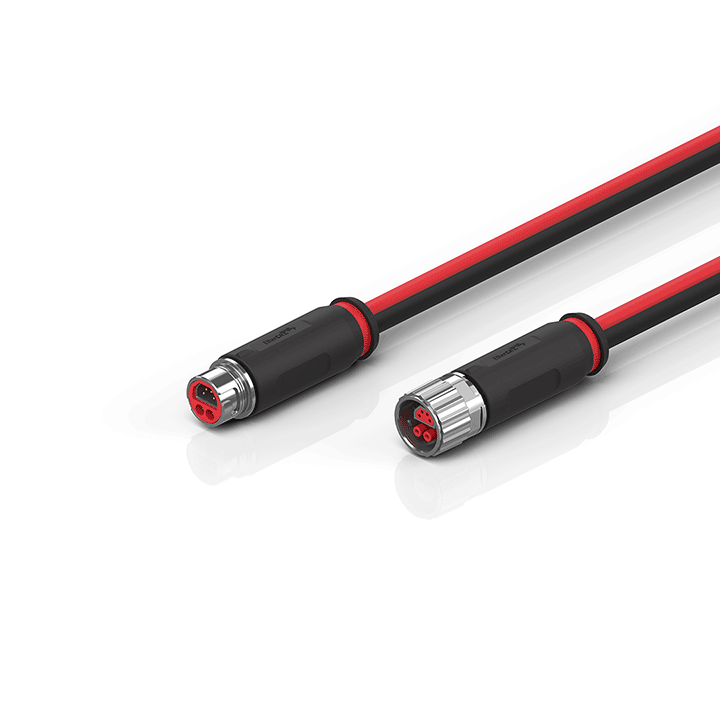

ZK7102-1007-0xxx | B12, ECP cable, PUR, 2 x 0.75 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (24В VВ DC)
