MSS5050T-103

General specification Core Material: Ferrite Weight: 0.28 – 0.36 g Packaging: 400/7 reel, 1500/13 reel, Plastic tape: 16 mm wide, 0.40 mm thick, 8 mm pocket spacing, 5.1 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

0,00 ₽

Категорий: Ferrite Drum, MSS5050T, MSS5050T-103, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR (Ω) 3		Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,20%)	typ	max	10% drop	20% drop	30% drop	20C rise	40C rise
MSS5050T-103ME_	10	0.061	0.075	1.9	2.0	2.1	1.4	1.9

Каталог

EL6731-0010 | Терминал EtherCAT, 1-канальный интерфейс связи, PROFIBUS, подчиненный

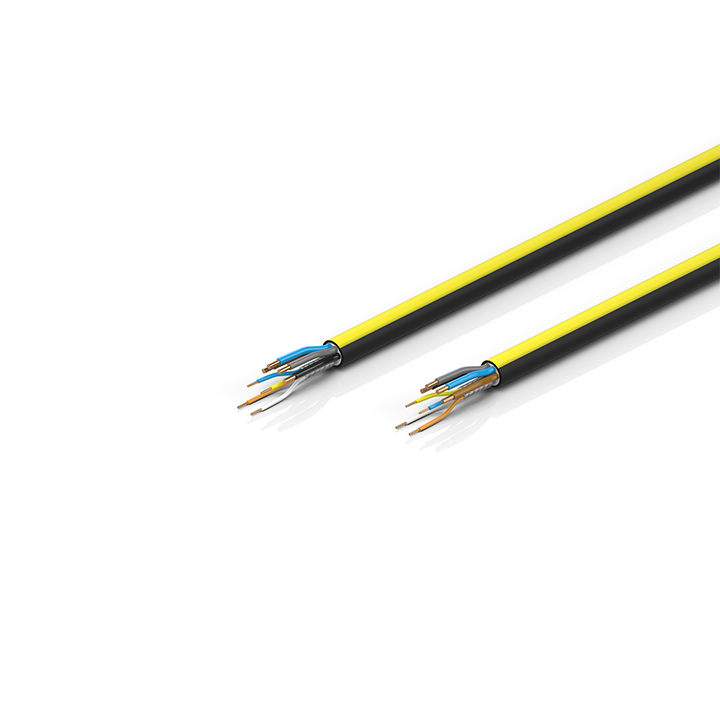

ZB7213-xxxx | EtherCAT/Ethernet cable, no overall shield, PUR, drag-chain suitable, 4 x 1.5В mmВІВ +В (1 x 4 x AWG22), black with yellow stripe, OD = 10.8 mm (В±0.2 mm)
