MSS1260H-684

General specification Core Material: Ferrite Weight: 2.8 – 3.3 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MSS1260H-684KED Категорий: High Voltage Inductors, MSS1260H, MSS1260H-684, Power, Products, МСС МОС (1)

Описание

Specifications

Electrical specifications at 25C. Operating voltage 400 V max

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS1260H-684KED	680	815	2.4	0.67	0.77	0.84	0.54	0.77

Каталог

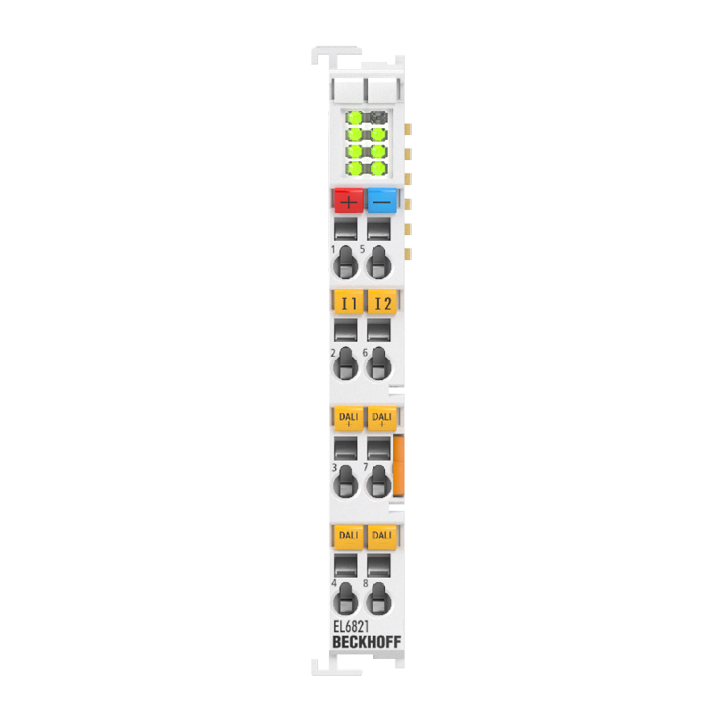

EL6821 | EtherCAT Terminal, 1-channel communication interface, DALI-2, master/power supply
