MSS1260H-475

General specification Core Material: Ferrite Weight: 2.8 – 3.3 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MSS1260H-475KED Категорий: Ferrite Drum, MSS1260H, MSS1260H-475, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C. Operating voltage 400 V max

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (kHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (kHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS1260H-475KED	4700	5380	1000	0.26	0.29	0.32	0.21	0.29

Каталог

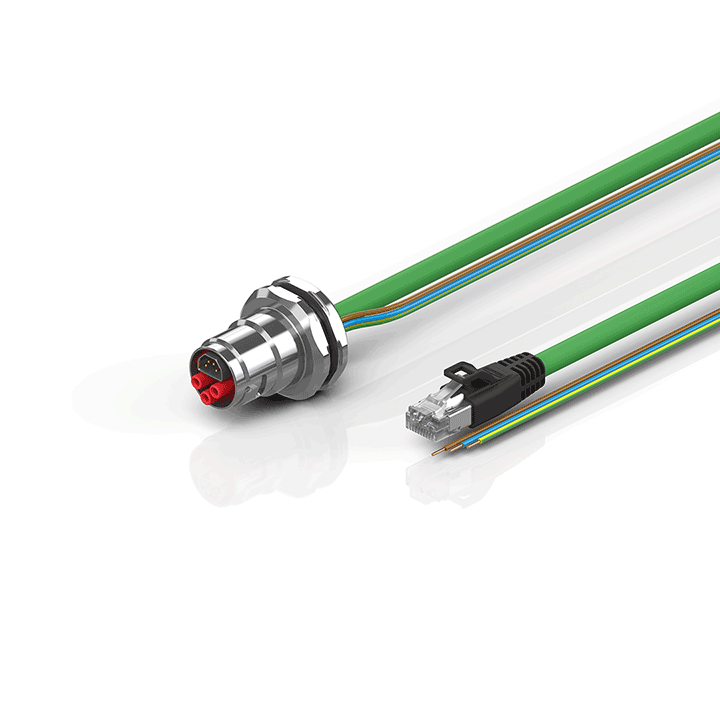

ZK7210-BO00-Axxx | B17, ENP cable, PUR, 3 G 2.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 1 (24В VВ DC)
