MSS1048T-474

General specification Core Material: Ferrite Weight: 1.7 – 1.9 g Packaging: 200/7 reel, 800/13 reel, Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing, 5.1 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MSS1048T-474KLC Категорий: Ferrite Drum, MSS1048T, MSS1048T-474, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS1048T-474KL_	470	886	2.7	0.43	0.52	0.62	0.50	0.72

Каталог

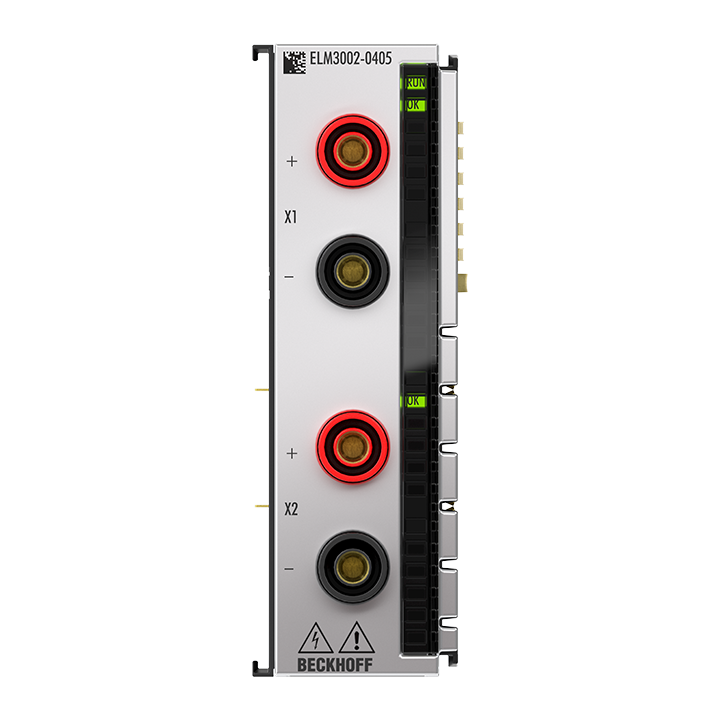

ELM3002-0405 | EtherCAT Terminal, 2-channel analog input, voltage, В±50 mVвЂ¦5В V/В±60 VвЂ¦1200 V, 24В bit, 50В ksps, electrically isolated, 4В mm socketNew
