MSS1038T-224

General specification Core Material: Ferrite Weight: 1.5 g Packaging: 250/7 reel, 1000/13 reel, Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing, 4.3 mm pocket depth Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MSS1038T-224KLC Категорий: Ferrite Drum, MSS1038T, MSS1038T-224, Power, Products, Shielded Inductors, МСС МОС

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20C rise	40C rise
MSS1038T-224KL_	220	756	5.0	0.72	0.88	0.99	0.70	0.97

Каталог

ZK7910-BP00-Axxx | B17, ENP cable, PUR, 3 G 2.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)

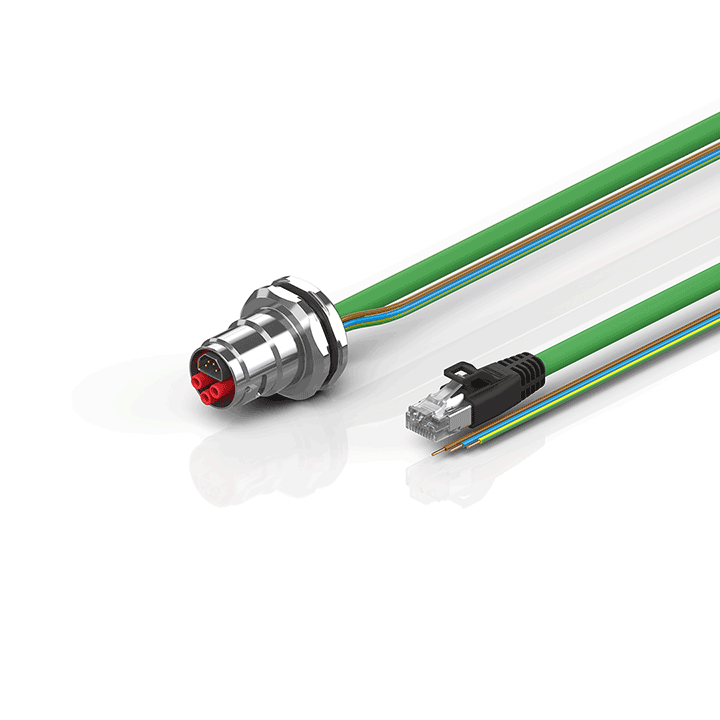

ZK7910-BO00-Axxx | B17, ENP cable, PUR, 3 G 2.5 mmВІ + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
