MSD1583-104

General specification Core Material: Ferrite Weight: 3.7 – 4.4 g Packaging: 300/13 reel, Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 8.6 mm pocket depth. Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

675,00 ₽

Артикул: MSD1583-104KED Категорий: MSD1583, MSD1583-104, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
MSD1583-104KE_	100	0.23	0.26	500	590	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR (Ω) 3		SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	typ	max	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
MSD1583-104KE_	100	0.23	0.26	5.1	&gt,0.99	590	3.7	4.2	4.6	1.2	1.8

Каталог

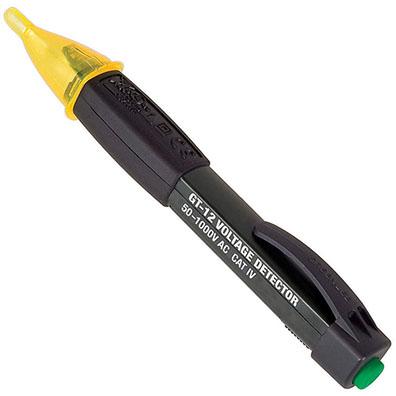

Greenlee Voltage Testers
