MSD1514-153

General specification Core Material: Ferrite Weight: 9.0 – 11.8 g Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested with pure water or alcohol only. More info.

900,00 ₽

Артикул: MSD1514-153MED Категорий: Data Line Common Mode Choke, EMI, MSD1514, MSD1514-153, Products

Описание

Specifications

Electrical specifications at 25C.

Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (MHz) 2	Inductance min (H) 3	Irms (A) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
Part number 1	Lines	Common mode peak impedance (kΩ)	Cutoff frequency (MHz) 2	Inductance min (H) 3	Irms (A) 4	DCR max (Ω) 5	Isolation Voltage (Vrms) 6
MSD1514-153ME_	2	11.70 @ 11.0 MHz	9.3	15	4.10	0.028	500

Каталог

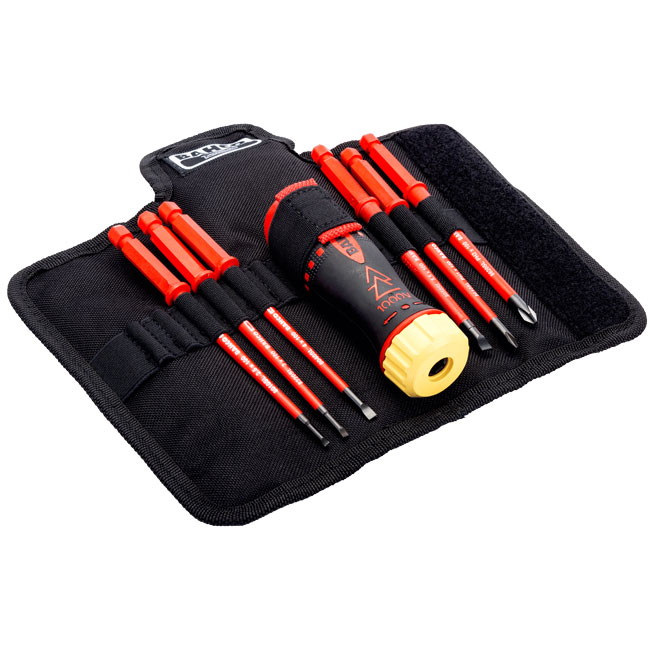

Snap On Bahco 6 Piece Insulated Ratcheting Screwdriver with Slotted and Philips Interchangeable Blade Set
