MSD1278T-823

General specification Core Material: Ferrite Weight: 3.7 – 4.4 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 8.7 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: PCB washing Tested with pure water or alcohol only. More info.

675,00 ₽

Артикул: MSD1278T-823MLD Категорий: MSD1278T, MSD1278T-823, Power Converter Transformers, Power Transformers, Products, Transformers

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
MSD1278T-823ML_	82	0.28	500	850	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
MSD1278T-823ML_	82	0.28	5.0	0.99	850	3.3	3.7	4.0	1.2	1.7

Каталог

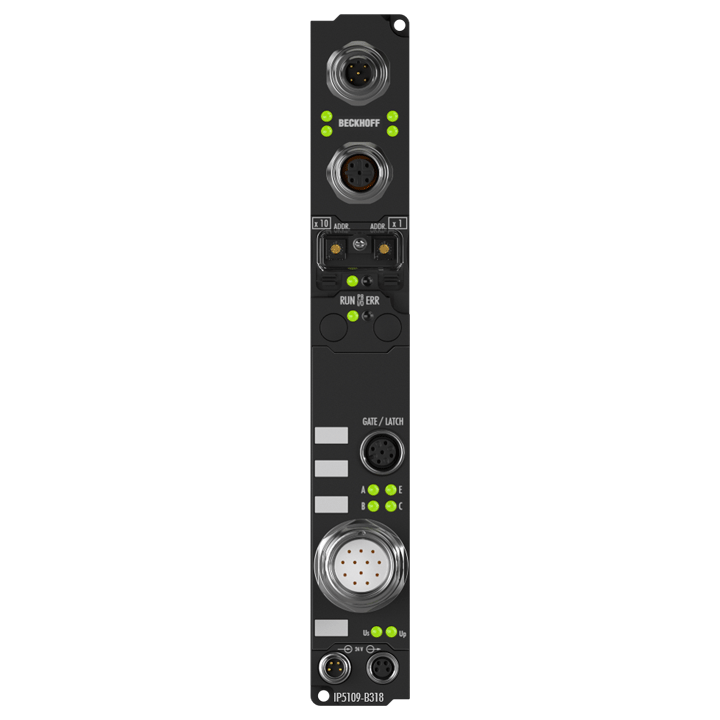

IP5109-B318 | Fieldbus Box, 1-channel encoder interface, PROFIBUS, incremental, 5В VВ DC (DIFFВ RS422,В TTL), 1В MHz, M23, integrated T-connector

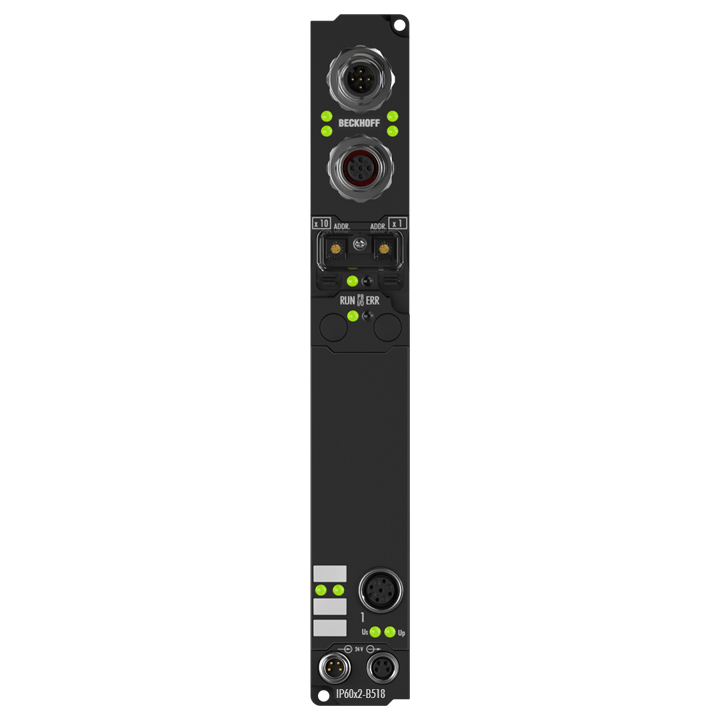

IP6022-B518 | Fieldbus Box, 2-channel communication interface, CANopen, serial, RS422/RS485, M12, integrated T-connector
