MSD1278T-223

General specification Core Material: Ferrite Weight: 3.7 – 4.4 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 8.7 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: PCB washing Tested with pure water or alcohol only. More info.

675,00 ₽

Артикул: MSD1278T-223MLD Категорий: 1 1 Экранированный Связанный, Coupled Inductors, MSD1278T, MSD1278T-223, Power, Products, МСД_Т

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (nH) 5	Turns Ratio
MSD1278T-223ML_	22	0.096	500	410	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	Isat (A) 6			Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Coupling coefficient	Leakage Inductance (nH) 5	10% drop	20% drop	30% drop	both windings 7	one winding 8
MSD1278T-223ML_	22	0.096	11.0	0.99	410	6.0	6.8	7.3	2.0	2.8

Каталог

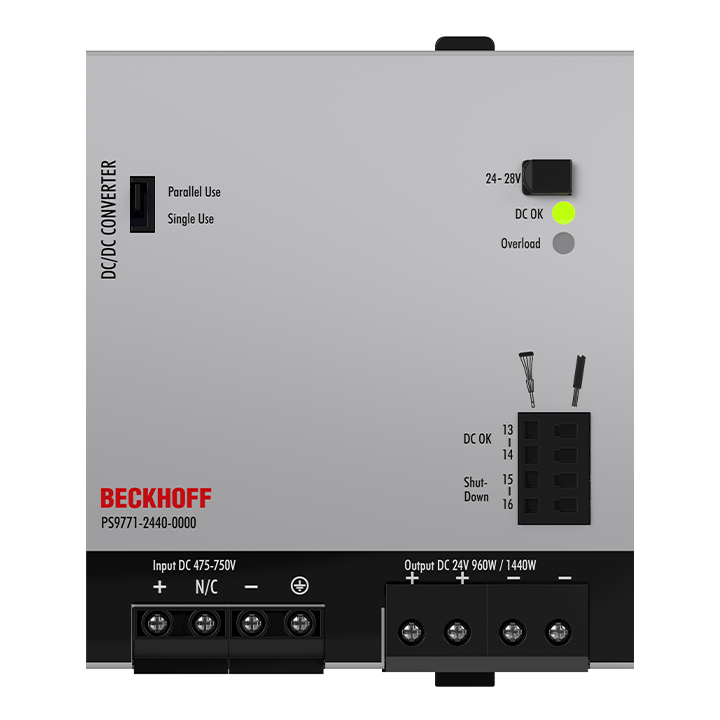

PS9771-2440-0000 | DC/DC converter PS9700, output: 24В VВ DC/40В A, input: 475вЂ¦750В VВ DCNew
