MSD1278-105

General specification Core Material: Ferrite Weight: 3.7 – 4.4 g Packaging: 500/13 reel, Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 8.7 mm pocket depth Winding to Winding Isolation: 500 Vrms, one minute Soldering/Washing Moisture Sensitivity Level (MSL): 1 (unlimited floor life at Resistance to soldering heat: Max three 40 second reflows at +260C, parts cooled to room temperature between cycles Refer to Soldering Coilcraft Components before soldering. PCB Washing: Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

450,00 ₽

Артикул: MSD1278-105KLD Категорий: 1 1 Shielded Coupled, Coupled Inductors, MSD1278, MSD1278-105, Power, Products, МСД

Описание

Specifications

Electrical specifications at 25C.

For Flyback Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	Isolation Voltage (V)	Leakage Inductance (H) 5	Turns Ratio
MSD1278-105KL_	1000	2.8	500	4.3	1 : 1

For SEPIC Applications

Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	Irms (A)
Part number 1 (Hover for schematics)	Inductance (H) 2 (Tolerance: &plusmn,10%)	DCR max (Ω) 3	SRF typ (kHz) 4	Coupling coefficient	Leakage Inductance (H) 5	Isat (A) 6	both windings 7	one winding 8
MSD1278-105KL_	1000	2.8	1100	&gt,0.99	4.3	1.1	0.37	0.52

Каталог

ELM3102-0030 | EtherCAT Terminal, 2-channel analog input, current, В±20 mA, 24 bit, 20В ksps, externally calibrated

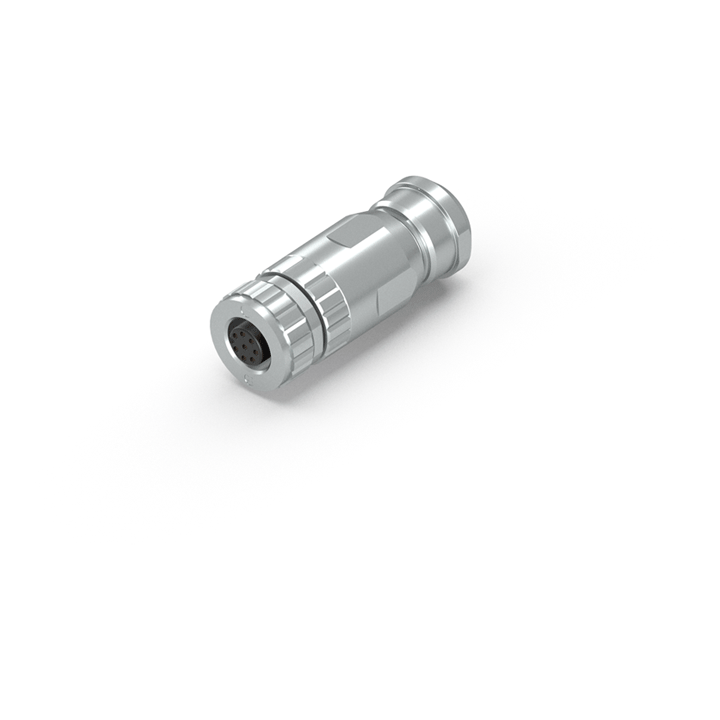

ZS2000-6723 | M12 socket field assembly, sensor, IP67, shielded
